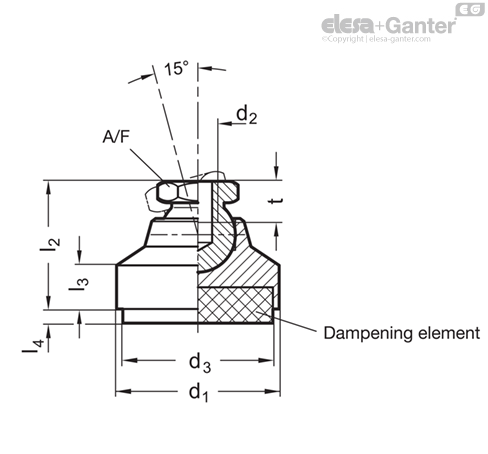

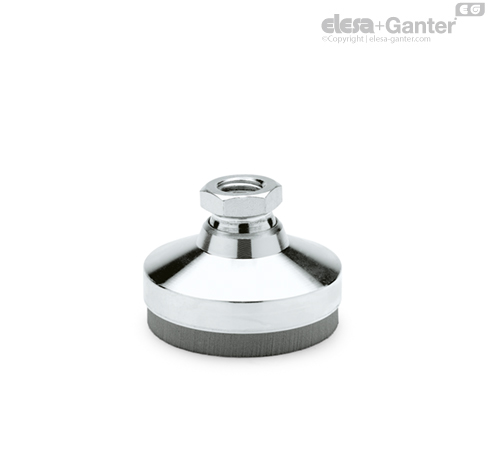

GN 342.1

The specified load in the table of the levelling feet GN 342.1 is a recommendation up to which the damping element can be permanently subjected.

This static load equals a thrust on the area of 0.4 N/mm² at which the damping material reaches its optimum dynamic damping ability. This also takes into account an additional load up to 0.6 N/mm² in the event of a dynamic load.

Levelling feet GN 342.1 cannot be disassembled.

• Elastomer characteristics

• Strength values

Active vibrations:

Vibrations transmitted to surroundings or associated equipment from working machinery for example.

Passive vibrations:

Vibrations transmitted to equipment or parts from vibrating surroundings or bases.

The efficiency of vibration absorption is dependent upon the interference frequency of the vibration to be absorbed as well as on the resonant frequency of the damping element itself.

A vibration absorbing effect is only achieved when the interference frequency is greater than √2-times the resonant frequency of the damping element. The greater the difference [∆] between the two, the better the damping effect.

The resonant frequency of the damping pad is dependant upon type (composition) of the material cross section and the static load.

The graphs on the left show all the required data of the standard material (SR 450-12) of the damping element. Damping elements with other absorption properties are available on request.



Example

Assume a load per levelling foot: 400 N

Compression levelling foot d₁ = 32

400 N / 707 mm² = 0.57 N/mm²

Compression levelling feet d₁ = 40

400 N / 11340 mm²= 0.34 N/mm²

Therefore levelling feet with d₁ = 40, that exert a pressure of 0.4 N/mm² should be preferred.

The above graph shows:

Resonant frequency with compression 0.34 N/mm²: 17.5 Hz

The lower graph shows:

Degree of isolation at 66 Hz interference frequency (P1): 92 %

Degree of isolation at 98 Hz interference frequency (P2): 97 %
