TCC-KS

Clamping kit for TCC

Technopolymer

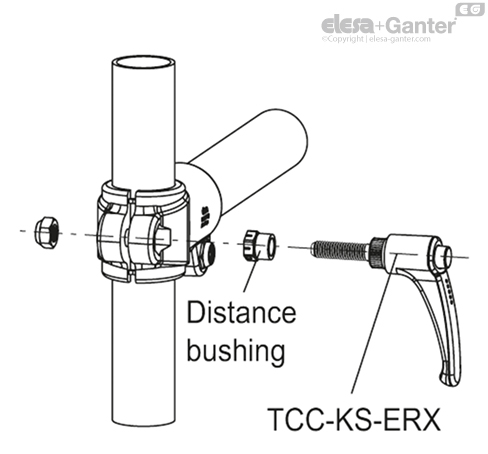

TCC-KS-ERX

Clamping kit for TCC
Adjustable handle

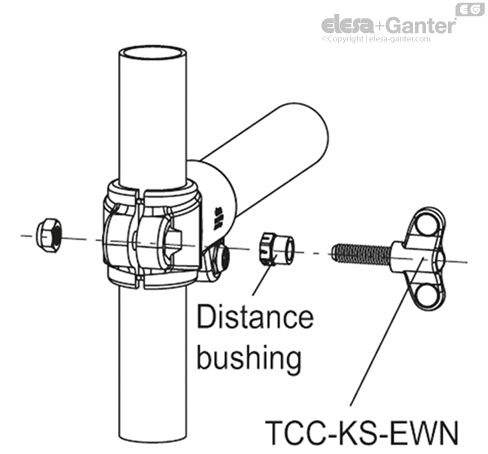

TCC-KS-EWN

Clamping kit for TCC
Wing nut

TCC-KS-ERX

Clamping kit for TCC
Adjustable handle

Adjustable handle and wing nut

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Distance bushing

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Self-locking nut

AISI 304 stainless steel.

Standard executions

  • TCC-KS-ERX: adjustable handle with AISI 303 stainless steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data), with black push button.
  • TCC-KS-EWN: wing nuts with AISI 303 stainless steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data), with black cap.

Features and applications

The clamping kit for TCC, comprising a distance bushing, an adjustable handle or a wing nut and nut, is used when clamping operations are required.
