GN 288

Swivel clamp connector joints

Aluminium

GN 288

Swivel clamp connector joints
Swivel clamp connector joints

GN 288

Swivel clamp connector joints
Swivel clamp connector joints

Identification No.

No. 2: with 3 Stainless Steel-Clamping screws DIN 912

Types

  • Type S: stepless adjustment
  • Type T: adjustment by 15°-division (serration)

Aluminium

plastic coated

black RAL 9005, textured finish SW

blank BL

matt shot-blasted

Clamping bores mechanically machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

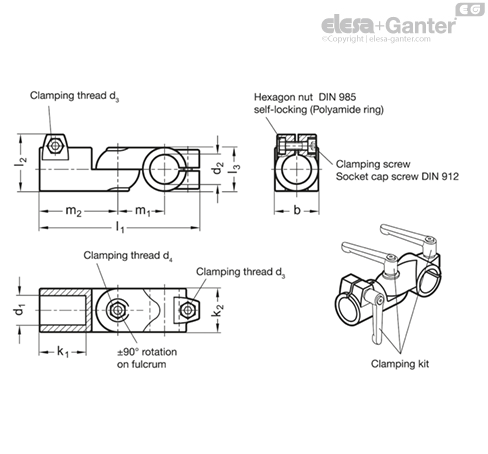

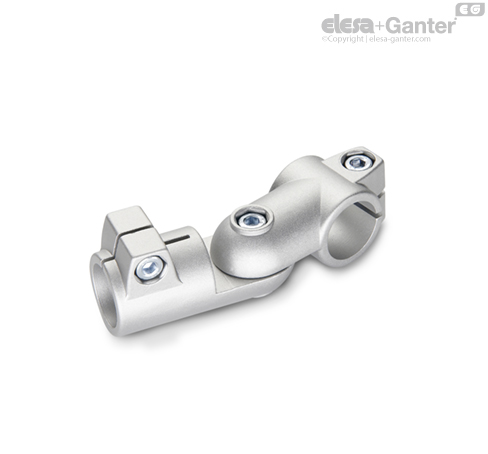

GN 288 swivel clamp connector joints are an assembly of swivel clamp connectors GN 276  and GN 278  to create swivel clamp connector joints.

For the type with stepless adjustment (Type S) swivel clamp connectors with a centring step are used. Within the identical swivel width “b”, all bores “d1/d2” can be combined as required.

The clamping bores are mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by adjustable clamping levers  GN 911  (see table of dimensions).
