GN 284

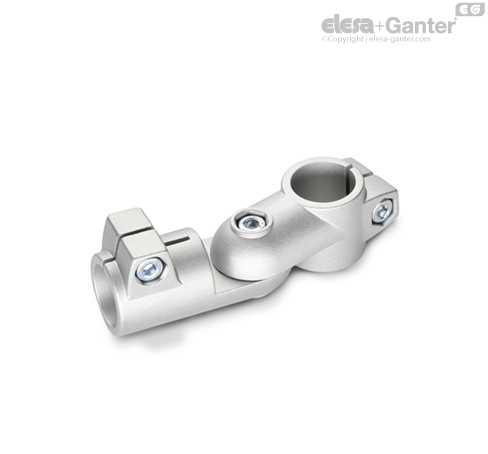

Swivel clamp connector joints

Aluminium

GN 284

Swivel clamp connector joints
Swivel clamp connector joints

GN 284

Swivel clamp connector joints
Swivel clamp connector joints

Identification No.

No. 2: with 3 Stainless Steel-Clamping screws DIN 912

Types

  • Type S: stepless adjustment
  • Type T: adjustment by 15°-division (serration)

Aluminium

plastic coated

black RAL 9005, textured finish SW

blank BL

matt shot-blasted

Clamping bores mechanically machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

GN 284 swivel clamp connector joints are an assembly of the swivel clamp connectors  GN 274  and GN 276 .

For the type with stepless adjustment (Type S) swivel clamp connectors with a centring step are used. Within the identical swivel width “b”, all bores „d1 / d2" can be combined as required.

The clamping bore is mechanically machined and designed for construction tubes  GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by adjustable clamping levers  GN 911  (see table of dimensions).
