GN 281

Swivel Clamp Connector Joints

Aluminum / Stainless Steel

GN 281

Swivel Clamp Connector Joints
Swivel clamp connector joints

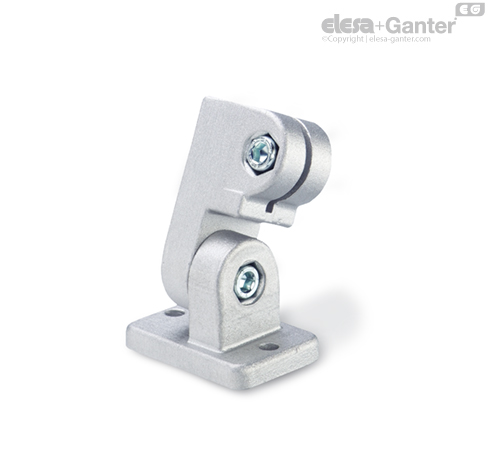

GN 281-AL

Swivel Clamp Connector Joints
Aluminum

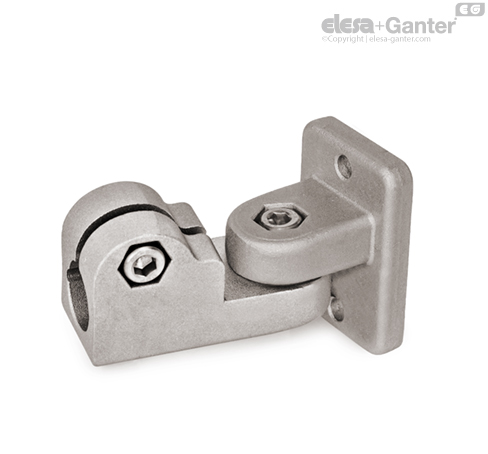

GN 281-NI

Swivel Clamp Connector Joints
Stainless Steel

GN 281

Swivel Clamp Connector Joints
Swivel clamp connector joints

Identification No.

No. 2: with 2 Stainless Steel-Clamping screws DIN 912

Aluminium

plastic coated

black RAL 9005, textured finish SW

blank BL

matt shot-blasted

Clamping bore mechanically machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

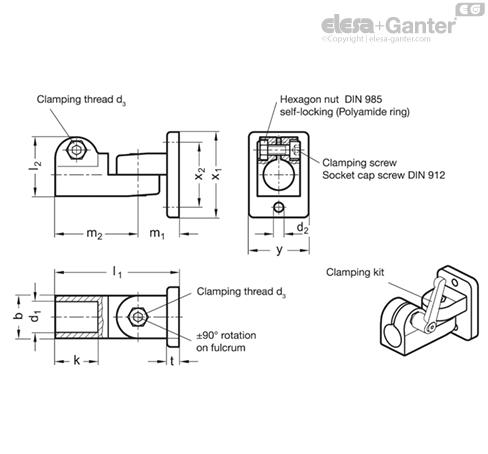

GN 281 swivel clamp connector joints are an assembly of the swivel clamp connectors  GN 271  and GN 275 .

The clamping bore is mechanically machined and designed for construction tubes  GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by adjustable clamping levers  GN 911  (see table of dimensions).
