GN 166

Off-Set Base Plate Connector Clamps

Aluminum, Split Assembly

GN 166

Off-Set Base Plate Connector Clamps

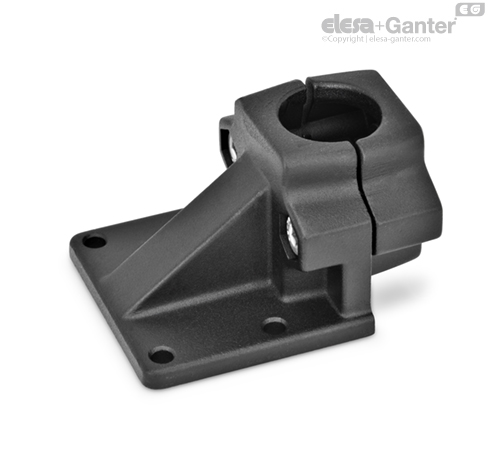

Off-set base plate connector clamps

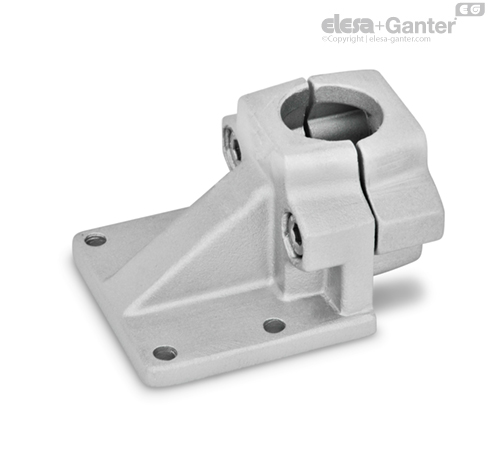

GN 166-B

Off-Set Base Plate Connector Clamps
Bore

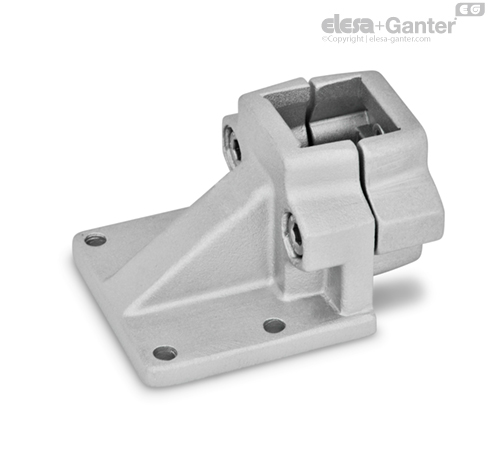

GN 166-S

Off-Set Base Plate Connector Clamps
Square

GN 166

Off-Set Base Plate Connector Clamps
Off-set base plate connector clamps

Identification No.

No. 2: with 2 Stainless Steel-Clamping screws DIN 912

Aluminium

plastic coated

black, RAL 9005, textured finish SW

blank

matt shot-blasted BL

Clamping bores not machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

The clamping bores of GN 166 off-set base plate connector clamps are not machined and specially designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The square designs are also suitable for use in profile systems.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN 911  (article code see table of dimensions).
