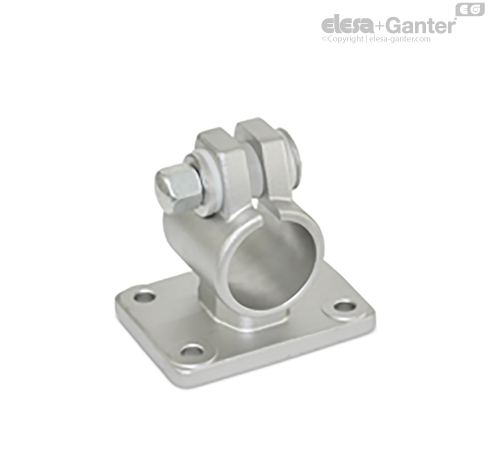

GN 146.5

Stainless Steel-Flanged connector clamps

with 4 holes

GN 146.5

Stainless Steel-Flanged connector clamps
Stainless Steel-Flanged connector clamps

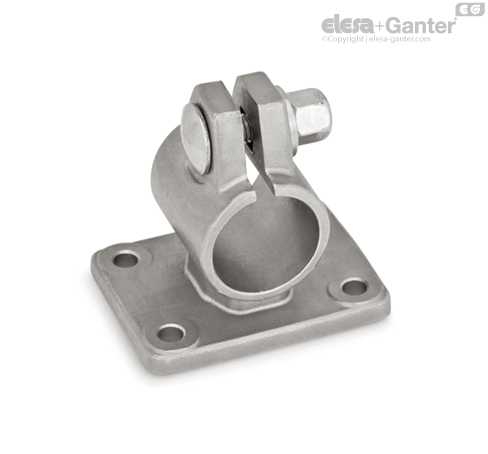

GN 146.5-A

Stainless Steel-Flanged connector clamps
Without seals

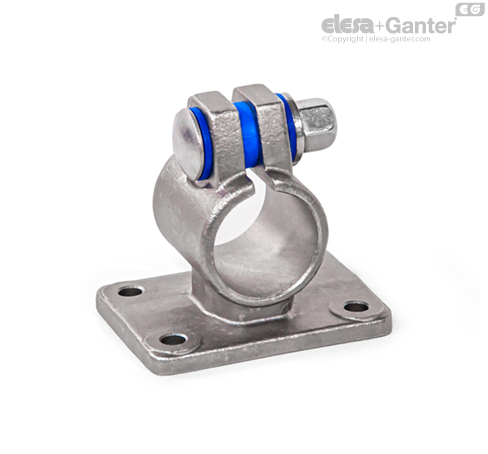

GN 146.5-B

Stainless Steel-Flanged connector clamps
With seals

GN 146.5

Stainless Steel-Flanged connector clamps
Stainless Steel-Flanged connector clamps

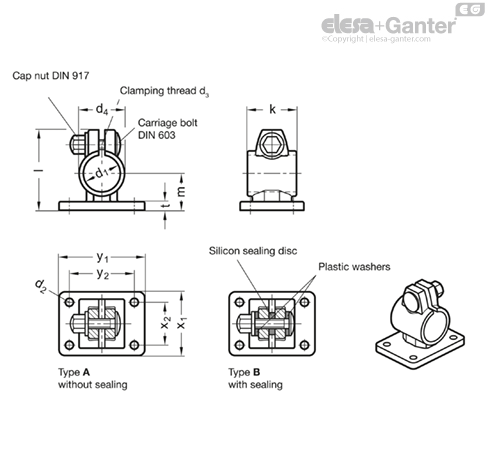

Types

  • Type A: without sealing
  • Type B: with sealing

Stainless Steel

  • AISI CF-8
  • matt shot-blasted

Clamping bores mechanically machined

Carriage bolt DIN 603

Stainless Steel A2

Cap nuts DIN 917

Stainless Steel A2

Sealings

Washers

Plastic (Polyacetal POM)

Edge ring

Silicon, 40 ... 60 Shore A

The clamping bores of GN 146.5 Stainless Steel-Flanged connector clamps are mechanically machined and designed for construction tubings  GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The shape of the clamping screws / nuts prevents the formation of wetness due to dammed-up water. The designs with sealing (Type B) also seals bore holes and threads.
