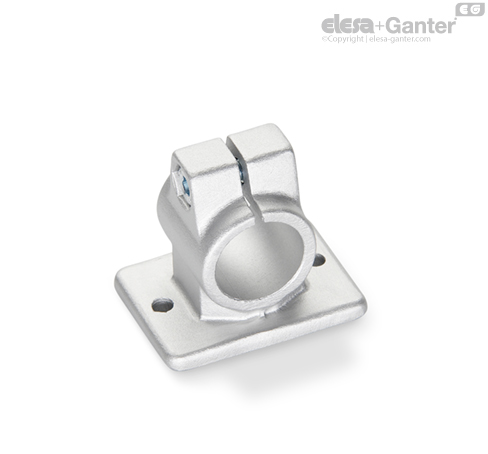

GN 146.3

Flanged connector clamps

Aluminium / with 2 retaining bores

GN 146.3

Flanged connector clamps
Flanged connector clamps

GN 146.3

Flanged connector clamps
Flanged connector clamps

Identification No.

No. 2: with Stainless Steel-Clamping screw DIN 912

Aluminium

plastic coated

black, RAL 9005, textured finish SW

blank

matt shot-blasted BL

Clamping bores mechanically machined

Socket cap screw DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

The clamping bores of GN 146.3 flanged connector clamps are mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

GN 146.3 flanged connector clamps are also suitable for mounting on profile systems.

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit  GN 911  (article code see table of dimensions).
