GN 145

Flanged connector clamps

Aluminum / Stainless Steel, with 2 Mounting Holes

GN 145

Flanged connector clamps
Flanged connector clamps

GN 145-AL

Flanged connector clamps
Aluminum, with 2 mounting holes

GN 145-NI

Flanged connector clamps
Stainless Steel-Flanged connector clamps

GN 145

Flanged connector clamps
Flanged connector clamps

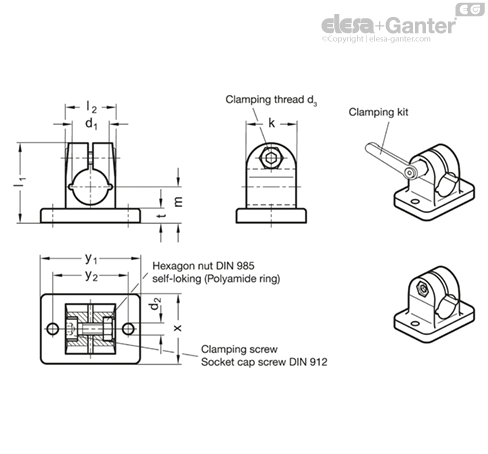

Identification No.

No. 2: with Stainless Steel-Clamping screw DIN 912

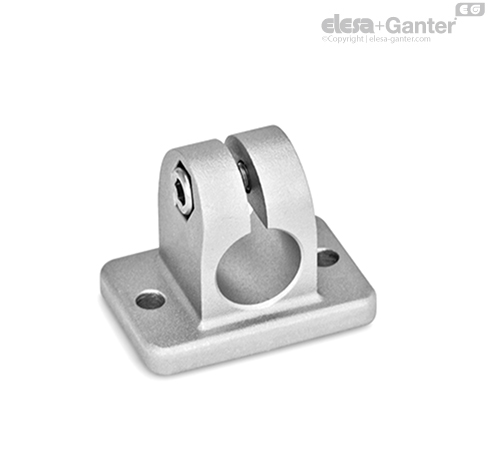

Version in Aluminium

plastic coated

black, RAL 9005, textured finish SW

blank

matt shot-blasted BL

Version in Stainless Steel NI

AISI CF-8

matt shot-blasted

Clamping bores mechanically machined

Socket cap screw DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

The clamping bores of GN 145 flanged connector clamps are mechanically machined and designed for construction tubes  GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

GN 145 flanged connector clamps are also suitable for mounting on profile systems.

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kits GN 911  / GN 911.3  (article code see table of dimensions).
