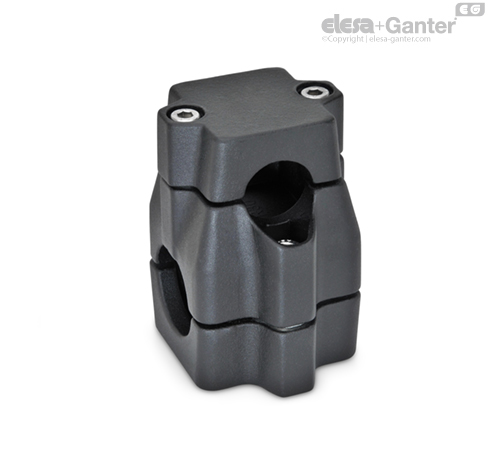

GN 135

Two-way connector clamps

Aluminum, Multi Part Assembly, Unequal Bore Dimensions d1 / s1 and d2 / s2

GN 135

Two-way connector clamps
Two-way connector clamps

GN 135

Two-way connector clamps
Two-way connector clamps

Identification No.

No. 2: With 4 stainless steel socket cap screws DIN 912

Aluminum

  • Powder coated

Black, RAL 9005, textured finish SW

  • Plain, matte shot-blasted BL

Socket cap screws DIN 912

Stainless Steel AISI 304

Hex nuts DIN 985

Stainless Steel AISI 304

Self-locking via polyamide ring

The clamping bores of two-way connector clamps GN 135 are designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The square designs are also suitable for use with profile systems.

The bores and squares are arranged in such a way that an adaptation between between different tube cross-sections is possible.

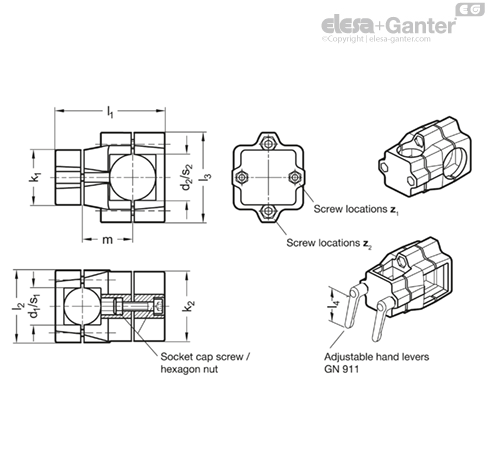

At the screw locations z1 / z2, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911  listed in the table as accessories.

  • Adjustable Hand Levers GN 911

  • Other bore and square combinations d1 / s1 and d2 / s2
