GN 133

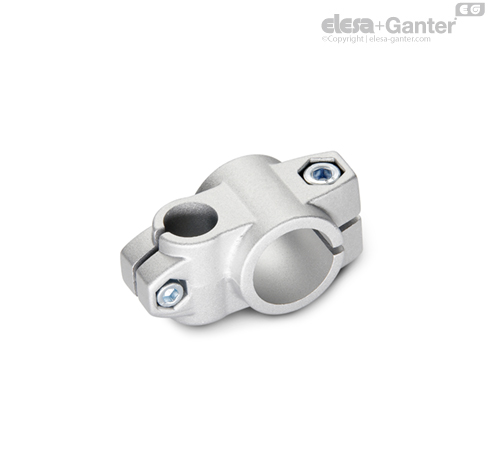

Two-way connector clamps

Aluminum, Unequal Bore Dimensions d1 / d2

GN 133

Two-way connector clamps
Two-way connector clamps

GN 133

Two-way connector clamps
Two-way connector clamps

Identification No.

No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

  • Powder coated

Black, RAL 9005, textured finish SW

  • Plain, matte shot-blasted BL

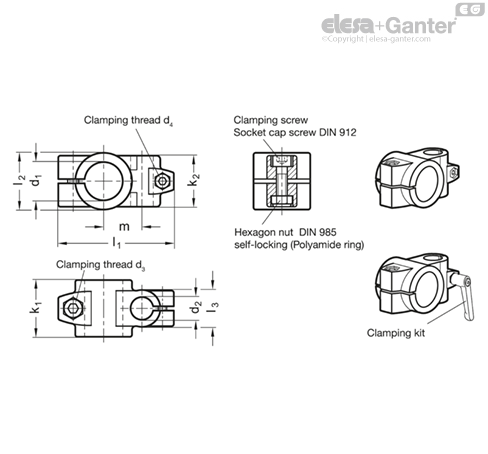

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

The clamping bores of two-way connector clamps GN 133 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

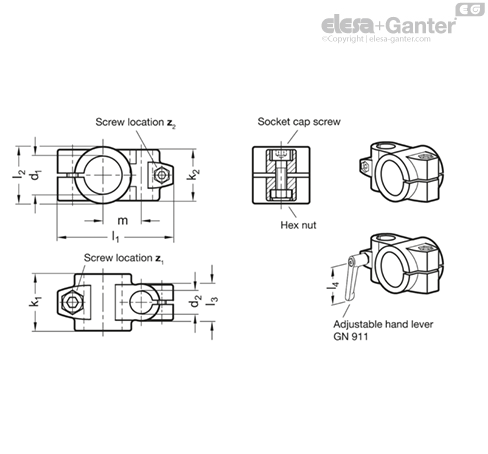

At the screw locations z1 / z2, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

  • Adjustable Hand Levers GN 911
