Toggle clamp steel
Lever arm steel
Parts in sheet metal
Bearing pins and rivets steel
hardened and ground
All moving parts
lubricated with special grease
High quality, oil resistant red plastic

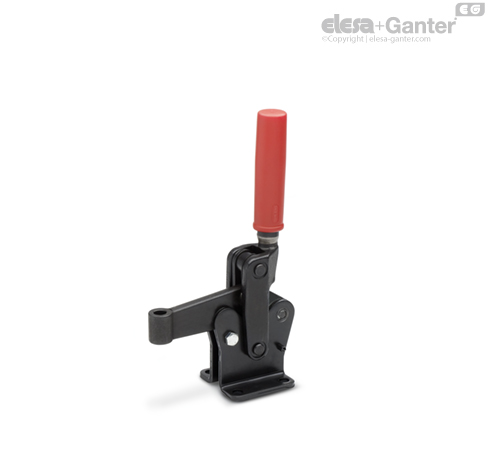

GN 910 heavy duty vertical acting toggle clamps "Longlife" are an advanced development of GN 810-: The steel sheet design of the clamp and lever arms is replaced by precision or die-forged components. The remaining steel sheet parts have been reinforced, bearing pins and rivets are hardened and ground.
These vertical clamps are therefore suitable for applications in which substantial forces occur and in which a long service life is required.
Extensive tests have shown that trouble-free function (under load) is ensured also after one million clamping cycles.
Stepped side washers are included.
