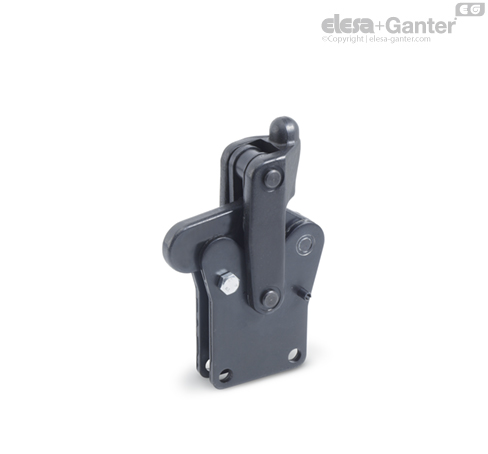

GN 910.2

Heavy duty knee lever modules

with horizontal or vertical mounting base, to screw-on

GN 910.2

Heavy duty knee lever modules
Heavy duty knee lever modules

GN 910.2

Heavy duty knee lever modules
Heavy duty knee lever modules

Types

  • Type C: Mounting holes vertical to the handle pivot point
  • Type G: Mounting holes parallel to the handle pivot point

Lever arm steel

  • forged
  • blackened

Parts in sheet metal

  • case-hardened steel C10
  • blackened

Bearing pins and rivets steel

hardened and ground

All moving parts

lubricated with special grease

GN 910.2 heavy duty knee lever modules have the same properties and attributes as the "Longlife" GN 910 / GN 910.1 heavy duty vertical acting toggle clamps: The clamping arms are die-forged, the remaining steel sheet parts have been reinforced and bearing pins and rivets are hardened and ground.

These knee lever modules are therefore suitable for applications in which substantial forces occur and in which a long service life is required.

Extensive tests have shown that trouble-free function (under load) is ensured also after one million clamping cycles.

These knee lever modules permit the size and position of the lever and clamping arms to be adjusted to match the specific application.

  • Handles, levers, clamping arm extenders, bushings, base plates
