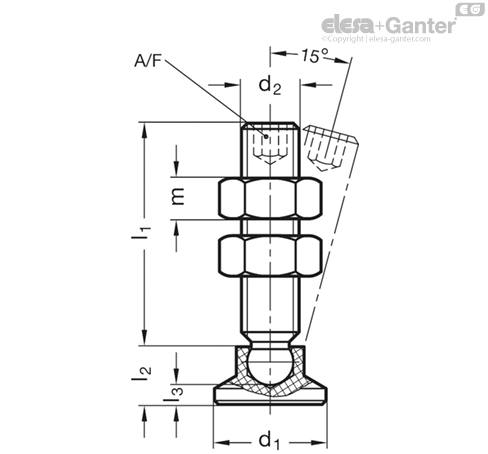

GN 903

Toggle clamp spindle assemblies

Steel / Stainless Steel, with swivel plastic thrust pad

GN 903

Toggle clamp spindle assemblies
Steel

GN 903-NI

Toggle clamp spindle assemblies
Stainless Steel

GN 903

Toggle clamp spindle assemblies
Steel

Thrust pad

Plastic (Polyacetal POM)

  • temperature resistant up to 80 °C
  • black, matt

Version in Steel ST

Grub screw

Steel

  • Tensile strength class 5.8
  • blackened

Hexagon nuts ISO 4032

Steel zinc plated, blue passivated

Version in Stainless Steel NI

Grub screw

Stainless Steel AISI 303

Hexagon nuts ISO 4032

Stainless Steel AISI 303

The ball end of the grub screw can be hit easily into the thrust pad and removed.

The two hexagon nuts are included parts of the order.
