Voltage range: 3 to 110 V AC/DC
Switch load: 0.3 A
Switch capacity (inductive): 10 VA
Voltage drop LED: 3 V
Temp. range: -20° C to +85° C
Slew rate: 0.6 ms
Life expectancy: 107 operations
Protection class: IP 67
Electric cable PVC 2 wires, 2.5 m.
If used on DC brown wire to be connected to +,
for the diode to work.

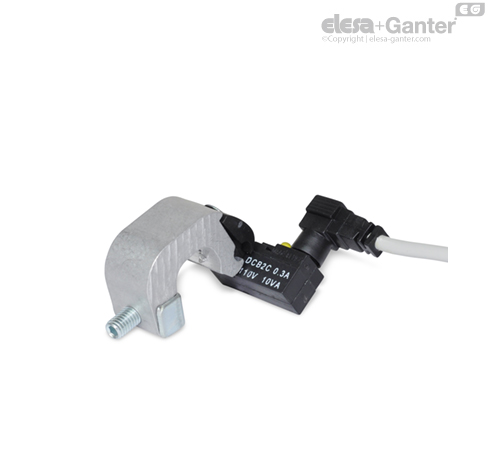

With a proximity switch GN 896.1 the pneumatically operated clamps can emit control signals. To do this the clamps must be assembled with a special cylinder with magnetic piston which will cause the electric contacts in the REED switch to close.
The proximity switches with their mounting brackets can be set anywhere along the full stroke length of the cylinder.
