GN 852.1

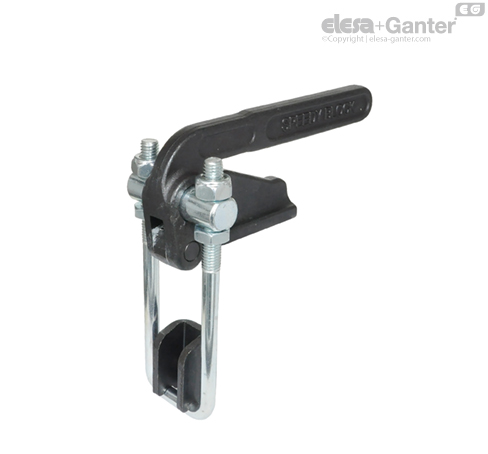

Vertical hook type toggle clamps

heavy duty type

GN 852.1

Vertical hook type toggle clamps
Vertical hook type toggle clamps

GN 852.1

Vertical hook type toggle clamps
Vertical hook type toggle clamps

Types

  • Type T: with mounting holes, without U-bolt latch, with catch
  • Type T3: with mounting holes, with U-bolt latch, with catch
  • Type TS: for welding, without U-bolt latch, with catch
  • Type T3S: for welding, with U-bolt latch, with catch

Base / operating handle

Steel C22

  • forged
  • blackened

Catch

Sheet metal

blackened

U-bolt latch / bearing pins

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

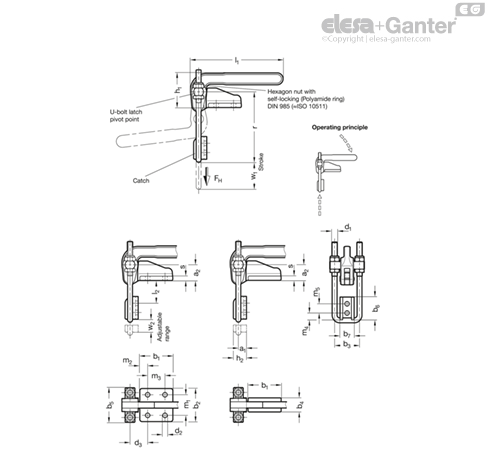

The U-bolt latch of GN 852.1 vertical hook type toggle clamps is adjustable within the adjusting range.

Once in the clamping position, the latch bolt is perpendicular to the clamping arm and to the mounting base of the toggle clamp.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.2 series.-
