GN 851

Horizontal latch type toggle clamps

Steel / Stainless Steel, for pulling action

GN 851

Horizontal latch type toggle clamps

GN 851-NI

Horizontal latch type toggle clamps

GN 851

Horizontal latch type toggle clamps

Types

  • Type T2: with U-bolt latch, with catch
  • Type T: without U-bolt latch, with catch

Version in Steel

Case-hardened Steel C10

zinc plated, blue passivated

U-bolt latch

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Handle with plastic sleeve

red, oil resistant

Version in Stainless Steel NI

Parts in sheet metal / U-bolt latch

Stainless Steel AISI 304

Pin

Stainless Steel AISI 303

All moving parts

lubricated with special grease

Handle with plastic sleeve

red, oil resistant

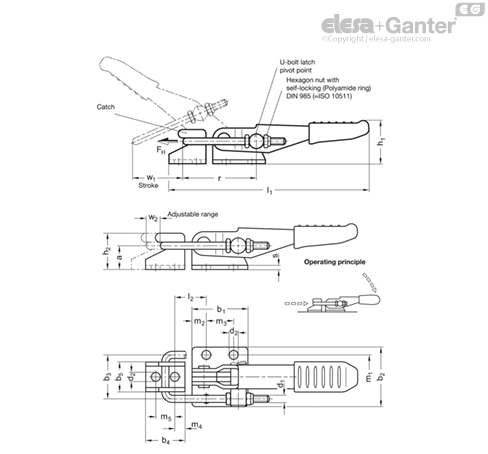

The stroke of the U-bolt latch of GN 851 latch type toggle clamps can be adjusted within its range.

In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.1 series.-
