GN 851.3

Latch Type Toggle Clamps

Steel / Stainless Steel, with safety hook, with pulling action

GN 851.3

Latch Type Toggle Clamps
Steel, with safety hook

GN 851.3-A4

Latch Type Toggle Clamps
Stainless Steel, with safety hook

GN 851.3

Latch Type Toggle Clamps
Steel, with safety hook

Types

  • Type T6: with U-bolt latch, with catch
  • Type T: without U-bolt latch, with catch

Version in Steel

Case-hardened Steel C10

zinc plated, blue passivated

U-bolt latch

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Handle with plastic sleeve

red, oil resistant

Version in Stainless Steel A4

Sheet metal parts / U-bolt latch / Pin

Stainless Steel AISI 316L

All moving parts

lubricated with special grease

Handle with plastic sleeve

red, oil resistant

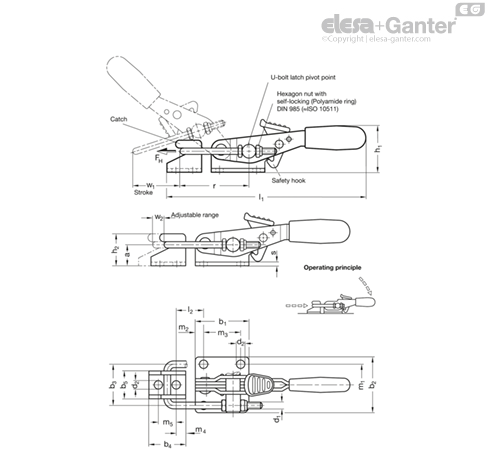

GN 851.3 horizontal latch type toggle clamps are compact in design and can be used to ensure high holding capacities.

When closing the spanner, a safety hook positively locks onto the body. This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation.

The stroke of the U-bolt latch can be adjusted within its range.

In addition to the standard lengths for the U-bolt latch shown above, more lengths may be achieved by using series GN 951.1 square U-bolts.-
