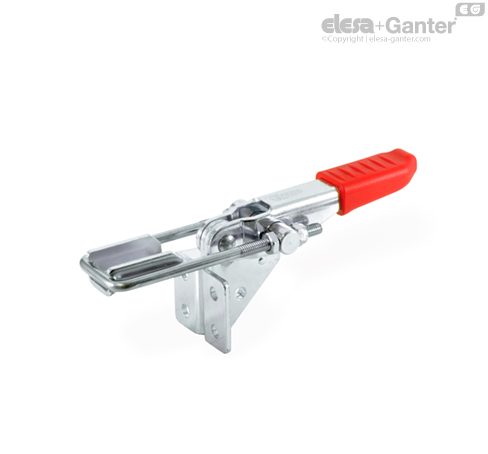

GN 851.2

Latch type toggle clamps

for pulling action

GN 851.2

Latch type toggle clamps
Latch type toggle clamps

GN 851.2

Latch type toggle clamps
Latch type toggle clamps

Types

  • Type T4: with U-bolt latch, with catch
  • Type T: without U-bolt latch, with catch

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

U-bolt latch

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Handle with plastic sleeve

red, oil resistant

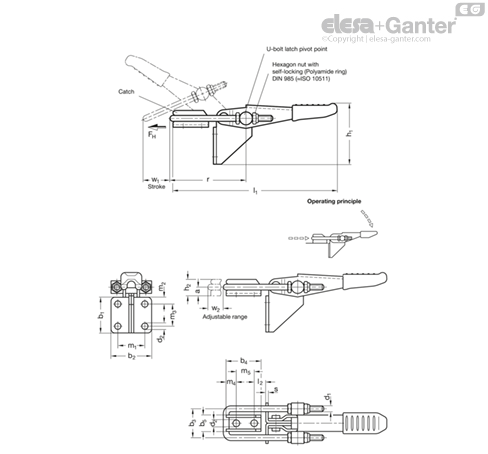

The stroke of the U-bolt latch of GN 851.2 latch type toggle clamps can be adjusted within its range.

In the clamped position the U-bolt latch and the clamping arm are horizontal to the vertical fixing plane.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.1 series.-
