GN 842

Heavy duty push-pull type toggle clamps

for push-pull clamping

GN 842

Heavy duty push-pull type toggle clamps
Heavy duty push-pull type toggle clamps

GN 842-NI

Heavy duty push-pull type toggle clamps
Stainless steel

GN 842-ST

Heavy duty push-pull type toggle clamps
Steel

GN 842

Heavy duty push-pull type toggle clamps
Heavy duty push-pull type toggle clamps

Type

  • Type AS: Steel or brass base, forged

Body

Brass: Size 70

Steel: Size 160 to 3100

  • forged
  • black lacquered

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

Plunger

Steel St 37

zinc plated, blue passivated

Bearing pins (rivets)

case-hardened

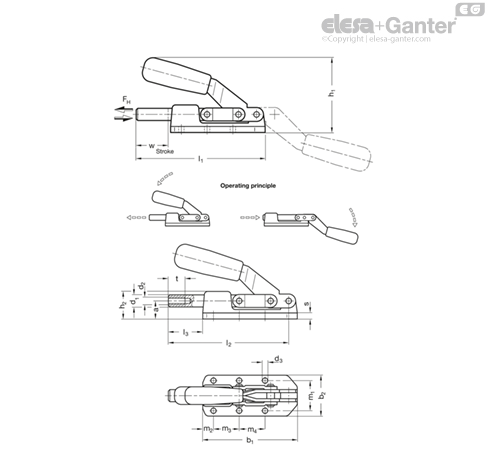

GN 842 heavy duty push-pull type toggle clamps can be used for very high holding capacities thanks to their massive and sturdy body.

On the size 70, the mounting holes are provided with cylindrical countersinks for the use of hexagon socket head screws DIN 912-M4.

  • Spindle assemblies-
