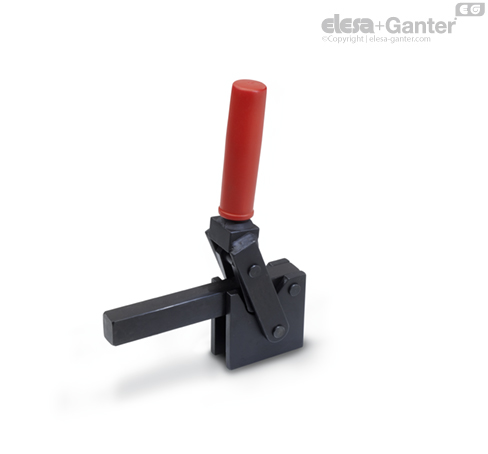

GN 813

Heavy duty vertical acting toggle clamps

with vertical mounting base

GN 813

Heavy duty vertical acting toggle clamps
Heavy duty vertical acting toggle clamps

GN 813

Heavy duty vertical acting toggle clamps
Heavy duty vertical acting toggle clamps

Type

  • Type F: Solid bar version

Bearing pins and clamping lever

Steel St 60

blackened

Other parts

Steel St 37

  • weldable
  • blackened

Bearing pins and rivets

case-hardened

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

GN 813 vertical acting toggle clamps are used for applications where a very high holding force is required such as closing of foam molds.

These clamps have been designed for easy dismantling: i.e. the bearing pins are locked with circlips.

After dismantling the individual parts, they can be modified to suit individual applications.
