GN 893.4

Proximity switch

for pneumatic fastening clamps, inductive sensor


Proximity switch
Proximity switch


Proximity switch
Proximity switch

Voltage range: 10 to 30 VDC

Switch load: 0 to 100 mA

Voltage drop: ≤ 2 V

Temperature range: 0 °C to 50 °C

Protection class: IP 65


  • green: operating voltage
  • red: switch position closed
  • yellow: switch position open

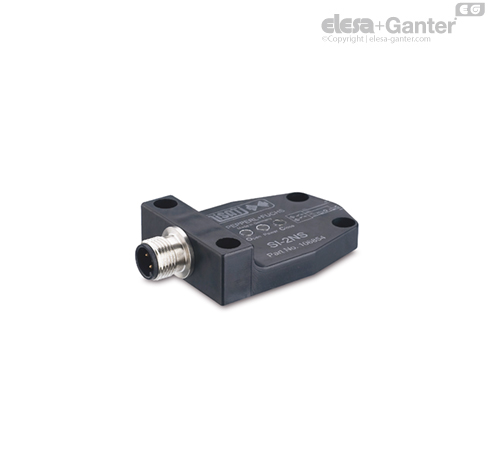

With this GN 893.4 proximity switch pneumatic fastening clamps can induce controlled signals whereby the LEDs indicate the operating and switch positions.

The proximity switches can be screwed directly on to the pneumatic fastening clamps. The position of the switches can be on either side.

A plastic intermediate plate and two cap screws M4 are included.

Cable with connector

4-pole, 5 or 10 meters long:
