Voltage range: 10 to 30 VDC
Switch load: 0 to 100 mA
Voltage drop: ≤ 2 V
Temperature range: 0 °C to 50 °C
Protection class: IP 65

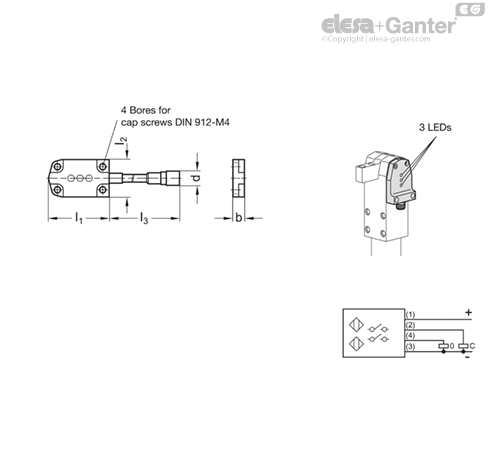

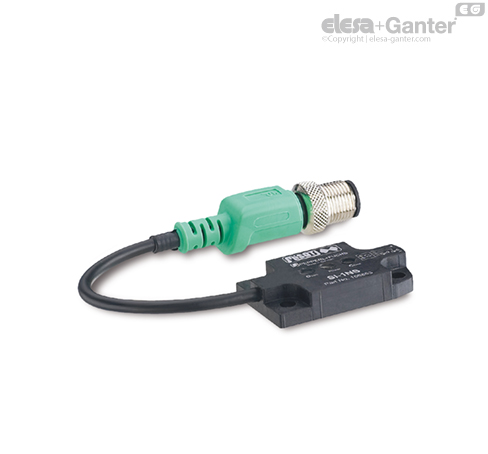

With this GN 893.1 proximity switch pneumatic fastening clamps can induce controlled signals whereby the LEDs indicate the operating and switch positions.
The proximity switches can be screwed directly on to the pneumatic fastening clamps. The position of the switches can be on either side.
A plastic intermediate plate and two cap screws M4 are included.
