GN 875

Swing Clamps

Pneumatic, in Block Version

GN 875

Swing Clamps
Swing clamps

GN 875-A

Swing Clamps
Clamping arm with slotted hole and 2 flanged washers

GN 875-AC

Swing Clamps
Clamping arm with slotted hole and 2 flanged washers

GN 875-B

Swing Clamps
Clamping arm with threaded hole

GN 875-F

Swing Clamps
Adapter flange

GN 875-N

Swing Clamps
Without clamping arm

GN 875

Swing Clamps
Swing clamps

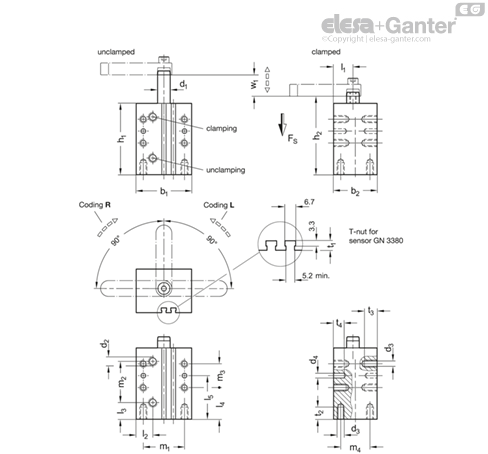

Coding

  • Type L: swiveling left
  • Type R: swiveling right

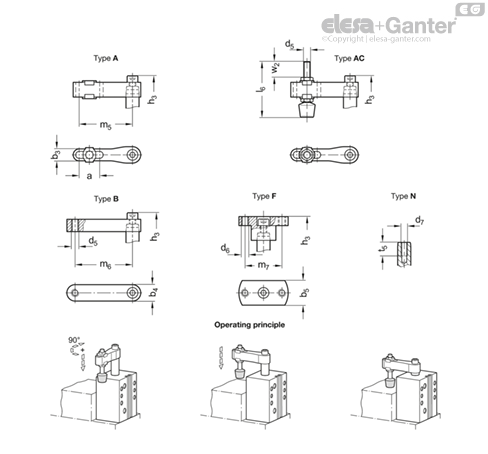

Types

  • Type A: Clamping arm with slotted hole and 2 flanged washers
  • Type AC: Clamping arm with slotted hole, 2 flanged washers and GN 708.1 spindle assembly
  • Type B: Clamping arm with threaded hole
  • Type F: Adapter flange
  • Type N: without clamping arm

Aluminum

hard anodized

wear-resistant surface

Double-action air cylinder

max. pressure 6 bar

Socket cap screw DIN 912

Steel, zinc plated, blue passivated

Washer ISO 7092

Steel, zinc plated, blue passivated

  • Steel, zinc plated
  • Rubber tip 85 Shore A

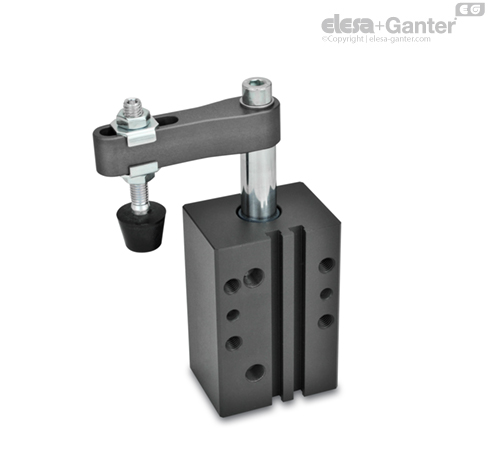

Swing clamps GN 875 are used when the clamping point for inserting and removing the workpiece must be freely accessible on top.

During the clamping action, the arm is first swiveled by 90° and lowered, followed by the linear tensioning motion. The workpiece clamping must take place within the clamping stroke.

The angle orientation of the tensioning arm can be set arbitrarily during mounting on the swing clamp. When tightening the screw, the piston rod must not experience any torque. The clamping arm must therefore be held to prevent twisting.

The swing clamps are equipped with a magnet ring piston and are therefore pre-fitted for end stop detection via sensor.

  • Toggle clamp spindle assemblies GN 708.1
