GN 864.1

Protective covers

for power clamps GN 864

GN 864.1

Protective covers
Protective covers

GN 864.1

Protective covers
Protective covers

Aluminum

  • black anodized ES
  • anti-stick coating, fluoropolymer (PTFE), green FG

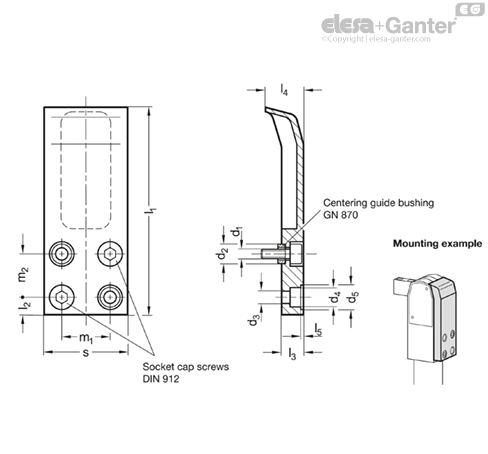

Socket cap screws DIN 912,

centering guide bushings

Steel, blackened

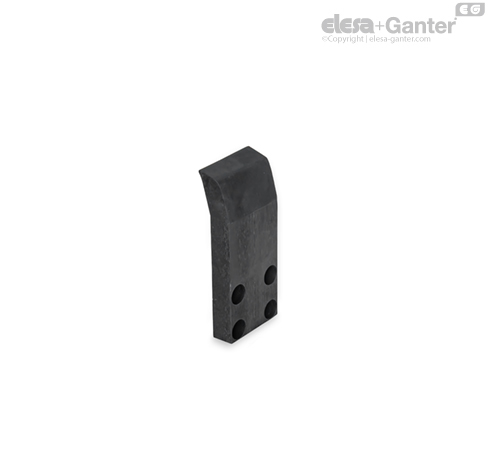

Protective covers GN 864.1 are designed for power clamps GN 864 and protect the tensioning mechanism from penetrating dirt by covering the back side of the power clamp.

The type FG is equipped with an anti-stick coating of fluoropolymer (PTFE) for protection against welding spray and corrosion.

Socket cap screws and centering guide bushings are included.
