GN 862.1

Pneumatic toggle clamps

with additional manual operation

GN 862.1

Pneumatic toggle clamps
Pneumatic toggle clamps

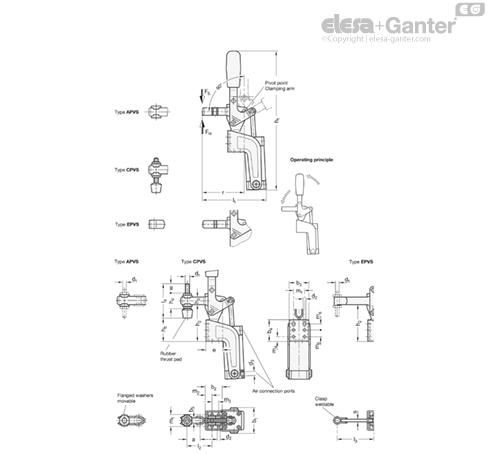

GN 862.1-APVS

Pneumatic toggle clamps
Forked clamping arm, with two flanged washers

GN 862.1-CPVS

Pneumatic toggle clamps
Forked clamping arm, with two flanged washers and clamping screw GN 708.1

GN 862.1-EPVS

Pneumatic toggle clamps
Solid clamping arm, with clasp for welding

GN 862.1

Pneumatic toggle clamps
Pneumatic toggle clamps

Types

  • Type APV3S: U-bar version, with two flanged washers
  • Type CPV3S: U-bar version, with two flanged washers and GN 708.1 spindle assembly
  • Type EPV3S: Solid bar version, with clasp

Coding

  • Coding M: Magnetic piston

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

Bearing pins hardened

Bearing rivets case-hardened

Air cylinder bearing pins

case-hardened

Double-action air cylinder

max. pressure 6 bar

All moving parts

lubricated with special grease

Spindle assembly  GN 708.1, Type A

  • Steel, zinc plated
  • Rubber tip 85 Shore A

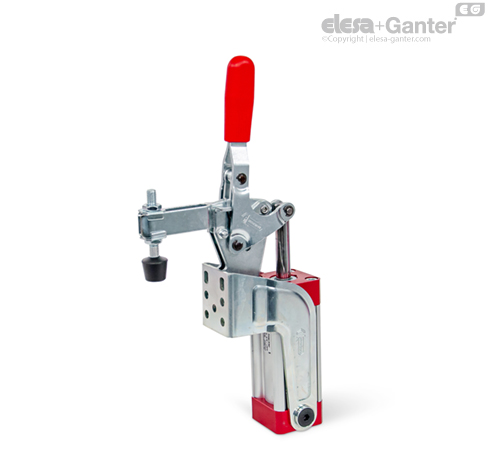

GN 862.1 pneumatic toggle clamps are built from the same construction as GN 862-.

The special features of these clamps are that they can be mounted in two different planes, and they can also be operated manually via the grip handle. For example, they can individually be manually closed, and then all clamps can be opened at once via the pneumatic function.

To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar.

GN 862.1 pneumatic toggle clamps are also available as a version M (magnetic piston). In conjunction with a GN 896.2- proximity switch, the piston position can be sensed and the generated impulse can be used to transmit an electrical signal.

  • Spindle assemblies-
  • GN 801 clamp mounts for toggle clamps (for Type APV3S)
  • GN 809 clamp mounts for toggle clamps (for Type EPV3S)
