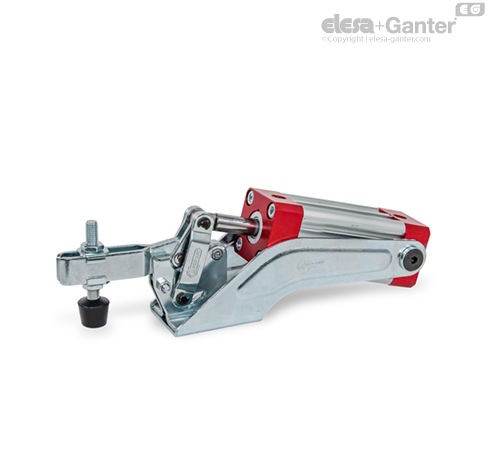

GN 860

Pneumatic toggle clamps

GN 860

Pneumatic toggle clamps
Pneumatic toggle clamps

GN 860-AP

Pneumatic toggle clamps
Forked clamping arm, with two flanged washers

GN 860-CP

Pneumatic toggle clamps
Forked clamping arm, with two flanged washers and clamping screw GN 708.1

GN 860-EP

Pneumatic toggle clamps
Solid clamping arm, with clasp for welding

GN 860

Pneumatic toggle clamps
Pneumatic toggle clamps

Types

  • Type AP3: U-bar version, with two flanged washers
  • Type CP3: U-bar version, with two flanged washers and GN 708.1 spindle assembly
  • Type EP3: Solid bar version, with clasp

Coding

  • Coding M: Magnetic piston (for size 200 and up)

Parts in sheet metal

case-hardened steel C10

zinc plated, blue passivated

Bearing pins

hardened

Bearing rivets (for size 200 and up)

case-hardened

Air cylinder bearing pins

case-hardened

Double-action air cylinder

max. pressure 6 bar

All moving parts

lubricated with special grease

Spindle assembly  GN 708.1 ,Type A-

  • Steel, zinc plated
  • Rubber tip 85 Shore A

The clamping principle of GN 860 pneumatic toggle clamps is identical in construction and dimensions to the manually operated GN 810 vertical toggle clamps.

To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar.

GN 860 pneumatic toggle clamps are also available in sizes 200 and up as a version M (magnetic piston). In conjunction with GN 896.1)/GN 896.2 proximity switches, the piston position can be sensed and the generated impulse can be used to transmit an electrical signal.

  • Spindle assemblies
  • GN 801 clamp mounts for toggle clamps (for Type AP3)
  • GN 809 clamp mounts for toggle clamps (for Type EP3)
