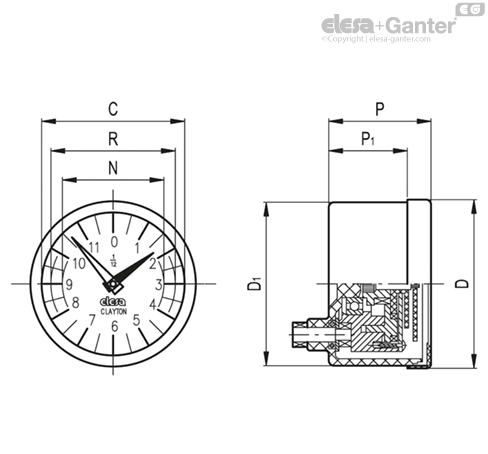

PA11 - PA12

Position indicators

positive drive, technopolymer

PA11 - PA12

Position indicators
Position indicators

PA11 - PA12

Position indicators
Position indicators


Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Moulded-in spindle.


Technopolymer. Moulded over the window.


Transparent polyamide based (PA-T) technopolymer (practically unbreakable).

Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations).


Natural matte anodised aluminium.

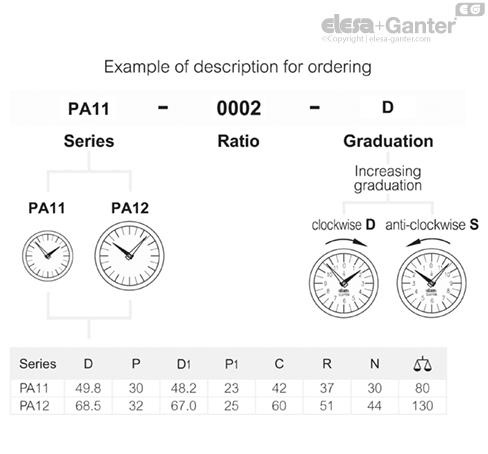

Clockwise (D) or anti-clockwise (S) graduation, black colour.


The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.

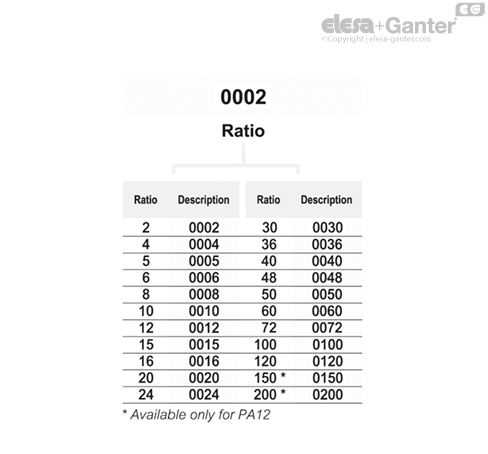

To choose the ratio see "Positive drive indicators introduction"-.

IP protection

The ultrasonic welding of the window to the case guarantees the complete sealing with IP 65 protection class, see EN 60529 table.

Features and applications

Digital-analogue positive drive indicators are suitable with spindles in any position.

To choose the handwheel see the table "Handwheels/knobs-possible assembly with indicators"-.

Special executions on request

  • Special dial with logo or customized graduations
  • Special ratios
  • Single pointer
