gravity drive, technopolymer


Knobs with integral indicator
Knobs with integral indicator


Knobs with integral indicator
Knobs with integral indicator

Diamond cut knurled knob

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Moulded-in spindle.


Technopolymer. Moulded over the window.


Transparent polyamide based (PA-T) technopolymer (practically unbreakable).

Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations).


Natural matte anodised aluminium.

Clockwise (D) or anti-clockwise (S) graduation, black colour.

Standard execution

Black-oxide steel boss, H7 reamed blind hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end UNI 5929-85.

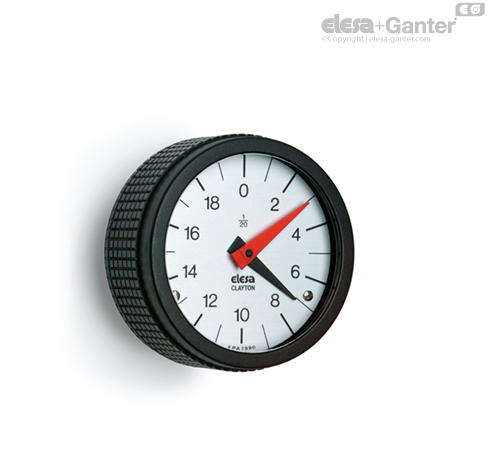

The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.

Ballrace rotation: maximum reading accuracy.

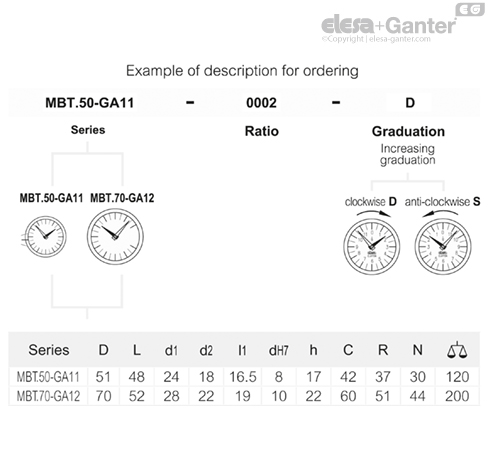

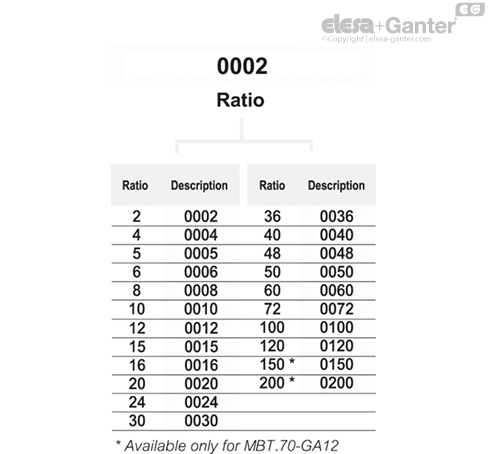

To choose the ratio see "Gravity position indicators introduction".

IP protection

The ultrasonic welding of the window to the case guarantees the complete sealing with IP 67 protection class, see EN 60529 table.

Features and applications

The knobs with integral gravity position indicator are suitable on spindles with horizontal or max 60° inclined axis.

Special executions on request

  • special dial with logo or customized graduations
  • special ratios
  • Filling with paraffin oil, maximum continuous working temperature 40°C
  • single pointer.
