Magnetic measuring system

Length and angle modes, data transmission via radio frequency


Magnetic measuring system
Magnetic measuring system


Magnetic measuring system
Magnetic measuring system


Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Retaining clip in acetal resin based (POM) technopolymer, black colour, matte finish.

Plate with keyboard

Polycarbonate resistant to greases, oils, alcohol and mineral acids.

Protection class

Features and applications

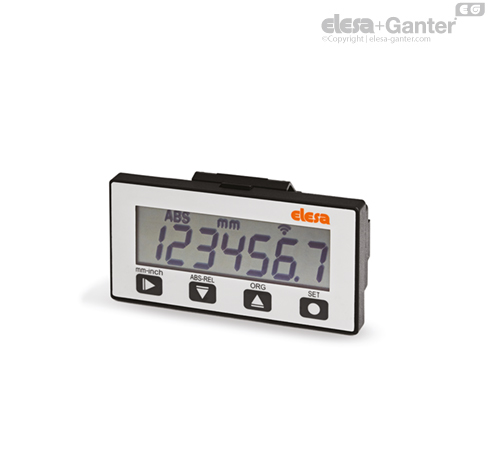

MPI-R10-RF measuring system connected to a specific sensor FC-MPI, combined with the magnetic band M-BAND-10, is a complete system for the measurement of linear and angular displacement (with a minimum radius of 65 mm).

Characterised by an extremely easy assembly, it allows precise alignment and positioning, reducing time and machining procedures to the minimum.

  • Maximum ease of assembly and disassembly operations of the device from the panel, thanks to a system with retention wing (ELESA PATENT).
  • 7-digit LCD of 12 mm height and special characters.
  • Programmable with 4 multifuction keys.
  • Values displayed in millimeters, inches or angular degrees.
  • Display of absolute or incremental mode.
  • Up to 10 programmable offset values.
  • Storage and display of 32 target positions.
  • Long-life internal lithium battery.
  • Buffered memory during battery substitution.
  • Housing for FC-MPI connector with snap-in assembly system for easy insertion and removal.

For further information read the "Operating instructions".

Mechanical and electrical characteristics
Power supplyLithium battery 1/2 AA 3.6 V (included in the supply).
Battery life2.5 years
Display7-digit LCD of 12 mm height and special characters.
Reading scale-199999; 999999
Number of decimal digitsprogrammable
Unit of measure

millimeters, inches or angular degrees


Max operating speed1 ÷ 5 m/s programmable (1)
Resolution (2)0.01 mm - 0.001 in - 0.01°
Precision (3)±0.1 mm
Repeatability (4)0.01 mm
Self-diagnosticBattery check, sensor check, magnetic tape check
Protection classIP54 or IP67
Working temperature0 ÷ 50 °C
Storing temperature-20 ÷ +60 °C
Relative humidityMax. 95% at 25°C without condensation
Operating environmentInternal use
AltitudeUp to 2000 m
RF frequencies2400-2416MHz

(1) Reading speed affects battery life.

(2) Resolution: the smallest variation in length that the system is able to display.

(3) Accuracy: the maximum deviation of the value measured by the system with respect to the real value.

(4) Repeatability: the degree of closeness between a measurement series of the same sample, when the individual measurements are made, leaving the measurement conditions unchanged.

Quick positioning system

MPI-R10-RF measuring system is networked to the control unit UC-RF via radio frequency (RF), constituting a wireless system for the rapid positioning of machine parts or multi-axial measurements (fig.4).

The wireless connection allows:

  • reading of the current position
  • setting of the target position
  • configuration of all operational parameters

The radio frequency system network allows different machines to coexist in the same space without problems of mutual interference.

This system is particularly suitable for applications that require frequent format changes, facilitating the correct adjustment of the target/current position of the machine parts, also representing a safety system. In fact, even if a single MPI-R10 measuring system is not placed in the target position, PLC doesn’t allow the beginning of the machine production cycle, thus avoiding production issues.

The installation of the system is quick and easy as it does not require the use of connecting cables between the control unit and the indicators.

Further technical information available in "Operating instructions".


Magnetic sensor with cable

FC-MPI to be ordered separately.

Accessories on request

Magnetic band M-BAND-10.

Special executions on request

The display of special plate may be supplied with customised graphic symbols, marks or writings.

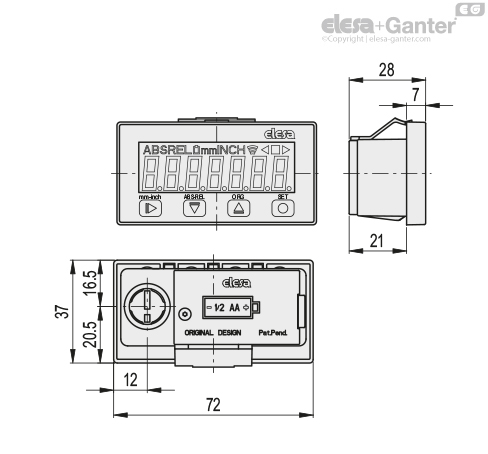

Assembly instructions

  • Drill the sheet (thickness 0.7÷2 mm) according to the template dimensions.
  • Remove all drilling burrs before fitting the case.
  • Fit the lower part of the case into the housing and press until the complete snap fitting (Fig.1).

Battery replacement instructions

  • Remove the indicator from its seat, applying pressure to the retention wing bringing it to the stop with the aid of a slotted screwdriver (Fig.2).
  • Unscrew the AISI 304 stainless steel self-tapping screw with six-lobe socket for TORX®* T06 tool and remove the closing plate (Fig.3).
  • Replace the battery paying attention not to invert the polarity (see the position indicated on the cover).
  • The replacement of the battery if carried out within 10 seconds (duration of the buffer power supply) avoids the loss of the configuration parameters.

* Registered trademark by TEXTRON INC.


The magnetic measuring system “-W2” version is compatible exclusively with the magnetic measuring system and control unit of the same “-W2” version.
