MDX-50

Knob for position indicators

For DD50 indicators, technopolymer

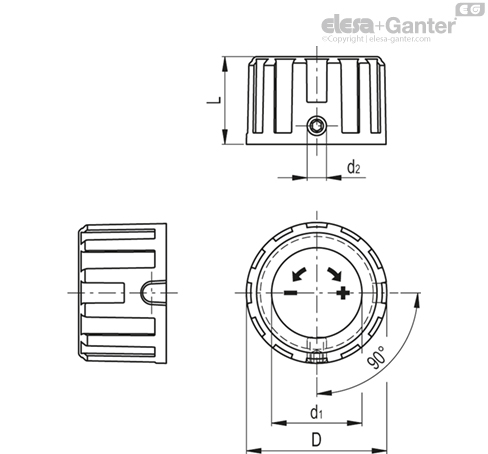

MDX-50-D

Knob for position indicators
Arrow indicating clockwise increase

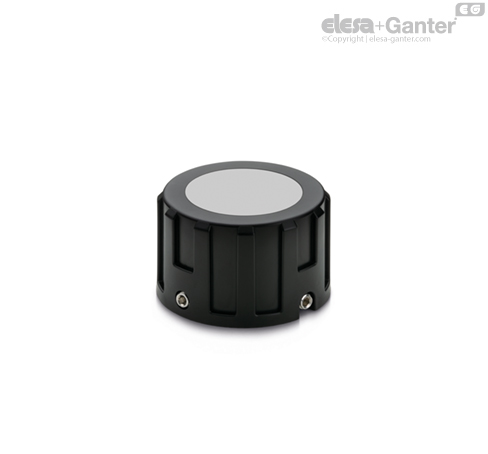

MDX-50-N

Knob for position indicators
Without graphic symbol

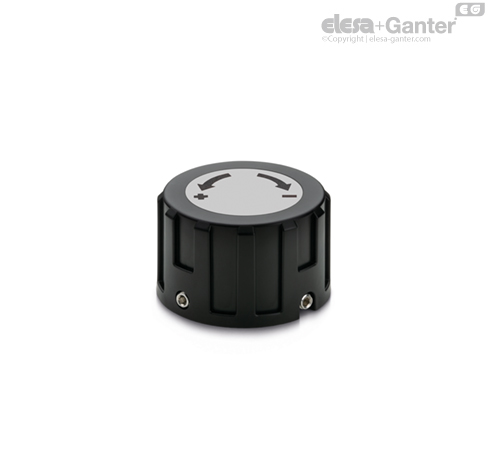

MDX-50-S

Knob for position indicators
Arrow indicating anti-clockwise increase

MDX-50-D

Knob for position indicators
Arrow indicating clockwise increase

Knob

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Cap

Polypropylene based (PP) technopolymer, RAL 2004 (C2) orange or RAL 7035 (C3) grey colour, matte finish, press-fit assembly.

Can be removed easily from the knob when not fitted to the indicator, if required.

Standard executions

  • MDX-50-N: no graphic symbol.
  • MDX-50-D: with arrow indicating clockwise increase.
  • MDX-50-S: with arrow indicating anti-clockwise increase.

Applications

The MDX-50 knob is made to be fitted to mechanical position indicators  DD50.

Accessories on request

CA.VCT: polypropylene-based (PP) technopolymer cap, in Elecolors colours, matte finish, press-fit assembly. For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

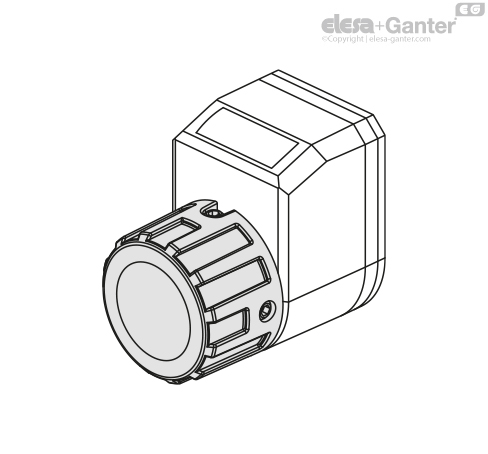

Assembly instructions

  • Remove the screw from the indicator boss and replace it with a longer stainless steel screw (M3x6 supplied).
  • Fit the knob to the indicator boss, fitting the slotted seat into the new screw.
  • Fix the knob to the indicator boss using the non-hexagonal socket head stainless steel grub screw with cup end, as per UNI 5929-85 (M3x4 supplied). Suggested tightening torque: 0.2 Nm
