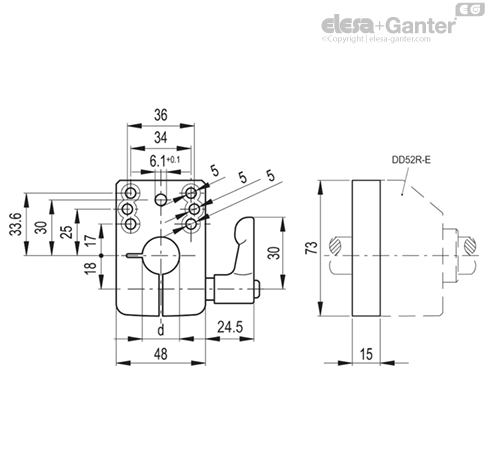

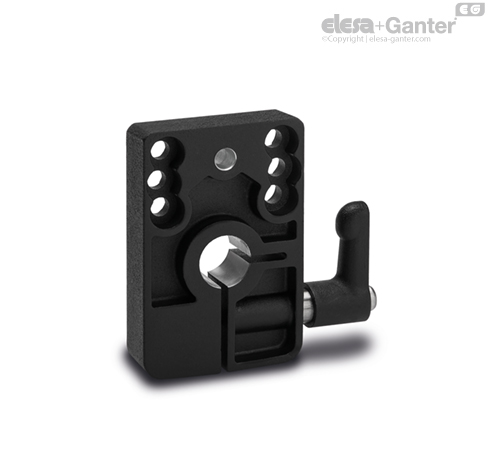

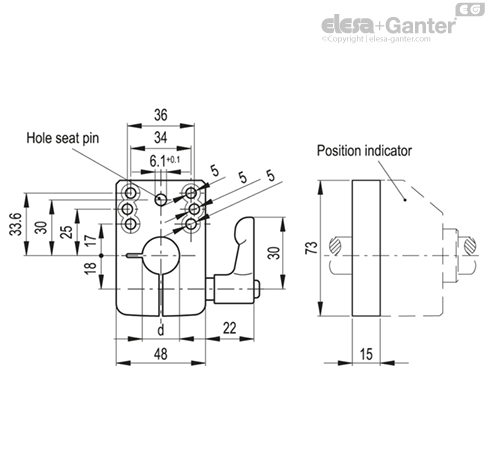

BSA52-E

Spindle locking bases for DD52R-E

Zinc alloy

BSA52-E

Spindle locking bases for DD52R-E
Spindle locking bases for DD52R-E

BSA52-E

Spindle locking bases for DD52R-E
Spindle locking bases for DD52R-E

Material

Die-cast zinc alloy bases for spindle locking, epoxy resin coating, black colour, matte finish.

GN 302.1 adjustable handle with lever body in die-cast zinc alloy, black colour and AISI 303 stainless steel clamping element.

Features and applications

BSA52-E locking bases allow an easy and quick locking of the spindles after their positioning. Ø 6.1 mm hole to fit the referring pin of the indicator. Handle positioned either on the right or on the left. Fitting to the machine by means of two cylindrical-head screws (not included in the supply).
