GN 923

Disk Handwheels

Aluminum, Powder Coated

GN 923-A

Disk Handwheels
without handle

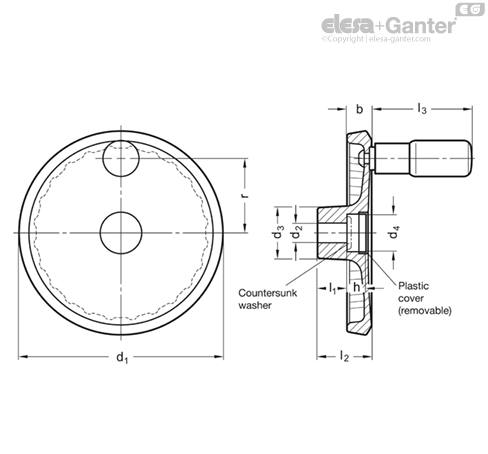

GN 923-R

Disk Handwheels
with revolving handle

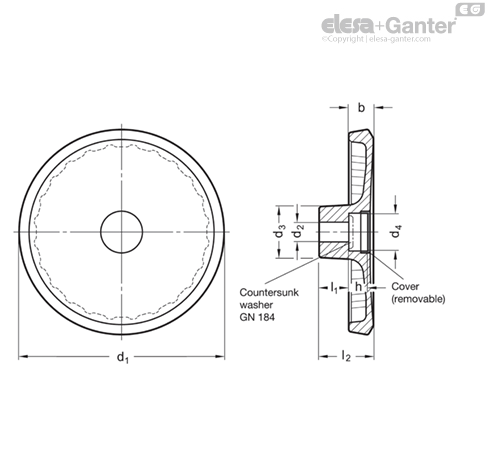

GN 923-A

Disk Handwheels
without handle


  • Type A: Without handle
  • Type R: With revolving handle

Bore codes

  • Version B: Without keyway
  • Version K: With keyway


  • Hub machined
  • Rim turned
  • Powder coated

Black, RAL 9005, textured finish SW

Silver, RAL 9006, textured finish SR

Radial and axial runout of the rim < 0.4

Revolving handles GN 798.2

  • Plastic, Technopolymer

Black, matte finish

  • Spindle steel

Zinc plated, blue passivated

Revolving cylindrical handles GN 599.5

  • Plastic, Technopolymer

Black, matte finish

  • Spindle stainless steel AISI 303

Disk handwheels GN 923 are distinguished by modern design.

The removable plastic cover shrouds the fixing components such as countersunk washers and protruding or recessed shafts.
