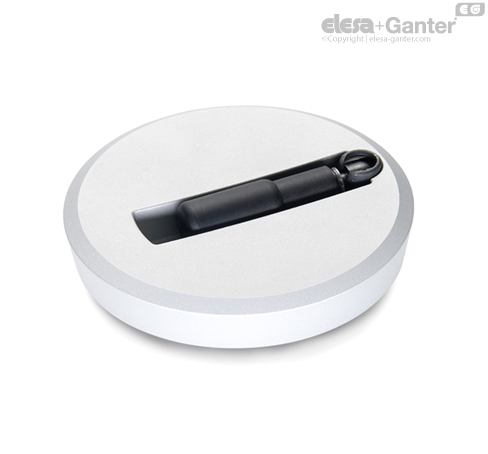

GN 923.7

Handwheels with retractable handle

Aluminium, Handle swivelling

GN 923.7

Handwheels with retractable handle
Handwheels with retractable handle

GN 923.7

Handwheels with retractable handle
Handwheels with retractable handle


  • Type R: with retractable handle

Bore codes

  • Version B: without keyway
  • Version K: with keyway

Aluminium pressure die casting

  • Hub machined
  • Rim turned
  • plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Rim concentric and square to bore < 0.4

Safety retractable handles GN 798.7 -

Plastic, Technopolymer

black, matt

Retracting mechanism

Steel, blackened

Disc handwheels GN 923.7 are distinguished by modern design.

These handwheels are suitable for applications where the handle must not remain in the operating position.

In order to bring the handle into this position it has to be turned first through 90° to a stop against a torsion spring and then it is pushed against spring pressure into its hold position. By maintaining the forward thrust on the handle the handwheel can easily be rotated.

When releasing the handle the springs returns it back to the retracted position.

  • Countersunk washers GN 184 are to be ordered separately
