GN 62

U-Magnets

with bore

GN 62

U-Magnets
U-Magnets

GN 62

U-Magnets
U-Magnets

Material of the magnet

AlNiCo AN

Aluminium, nickel, cobalt

temperature resistant up to 450 °C

Lacquering red

temperature resistant up to 180 °C

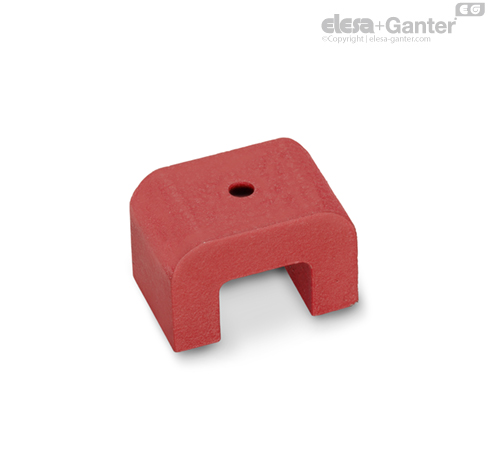

U-magnets GN 62 are unshielded magnets with a split magnetic surface that are manufactured by casting. Their usage temperature is largely limited by the red lacquering. For higher temperatures, blank U-magnets are available on request.

To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.

blank, temperature resistant up to 450 °C
