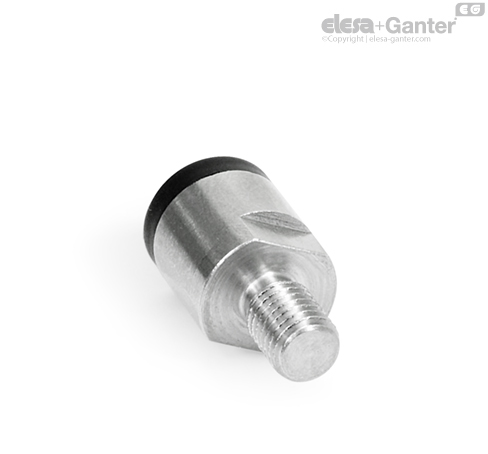

GN 52.5

Stainless Steel-Retaining magnets

Rod-Shaped, with Gummed Magnetic Surface

GN 52.5

Stainless Steel-Retaining magnets
Stainless Steel-Retaining magnets

GN 52.5

Stainless Steel-Retaining magnets
Stainless Steel-Retaining magnets

Housing

Stainless steel

Material of the magnet

NdFeB ND

Temperature resistant up to 80 °C

Rubber

Elastomer (TPE)

≈ 80 Shore A

Black

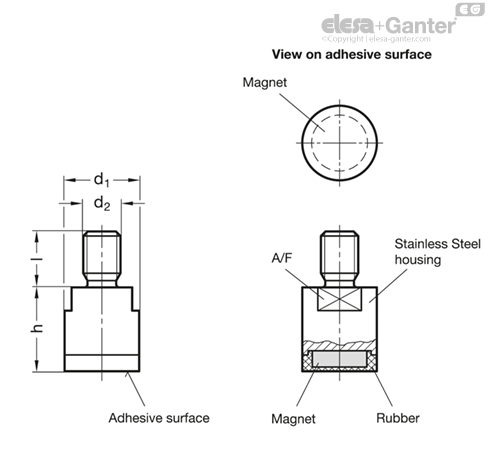

Stainless steel retaining magnets GN 52.5 are combined with the stainless steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the gummed magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
