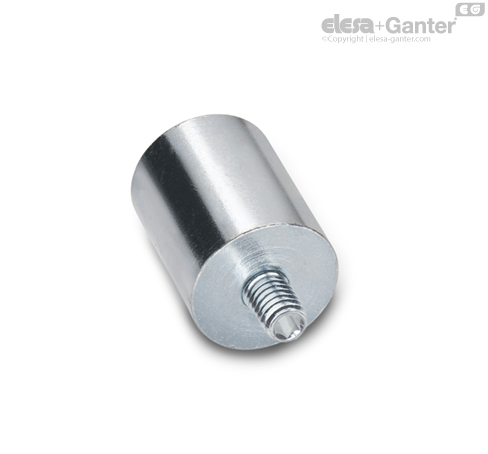

GN 52.4

Retaining magnets

rod-shaped, with threaded stud

GN 52.4

Retaining magnets
Retaining magnets

GN 52.4

Retaining magnets
Retaining magnets

Type

  • Type E: with threaded stud

Housing

Steel, zinc plated

Materials of the magnet:

AlNiCo AN

Aluminium, nickel, cobalt

temperature resistant up to 450 °C

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

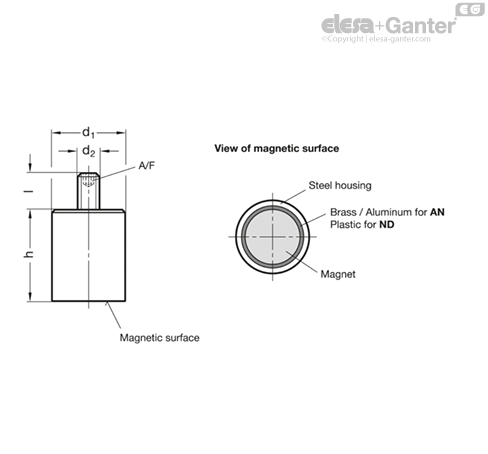

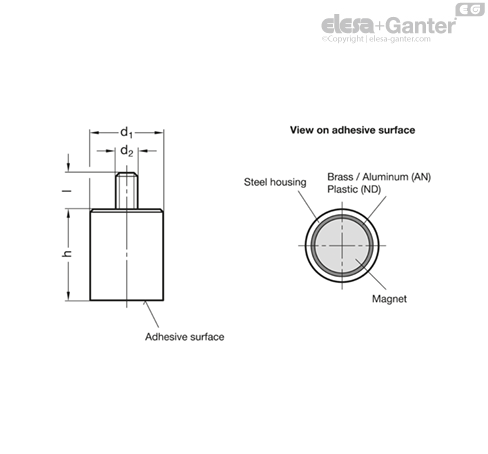

Retaining magnets GN 52.4 are a shielded magnetic system.
