GN 70.2

Rubber caps

for retaining magnets

GN 70.2

Rubber caps
Rubber caps

GN 70.2

Rubber caps
Rubber caps

Rubber

Acrylonitrile butadiene rubber NBR

  • Black SW
  • 75±10 Shore A
  • Temperature resistant -30 °C up to 100 °C

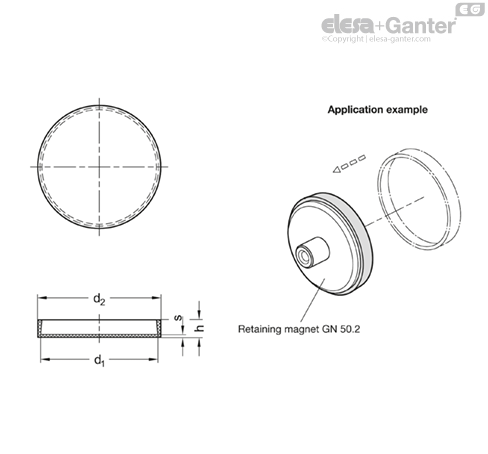

Rubber caps GN 70.2 can be used with all non-rubberized retaining magnets. The inner diameter values d1 are matched to the respective outer diameters of the magnets. The specified nominal magnetic forces of the magnets are reduced due to the 0.5 mm wall thickness of the caps.

Rubber caps protect surfaces from being damaged by the magnet. They also prevent hard, loud contacts, and the increased friction reduces sideways slippage.

The rubber caps are easily affixed to the magnet by hand and can be removed again, if necessary.
