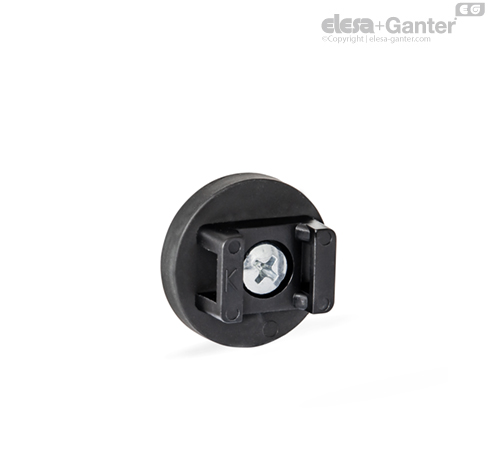

GN 51.9

Retaining magnets

for cable and line assembly

GN 51.9

Retaining magnets
Retaining magnets

GN 51.9

Retaining magnets
Retaining magnets

Steel part

Zinc plated

Cable holder

Plastic

Screw

Steel, zinc plated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Rubber jacket

Elastomer (TPE)

≈ 80 shore A

Black

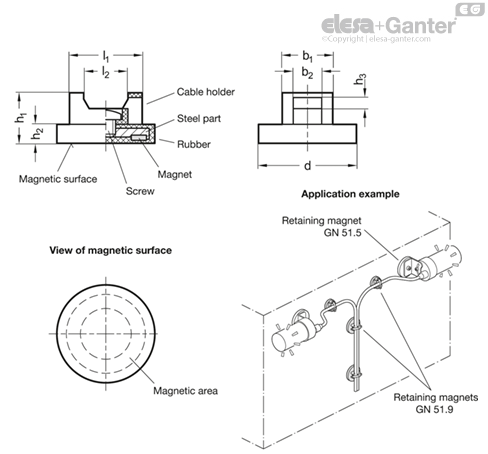

The retaining magnets GN 51.9 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.

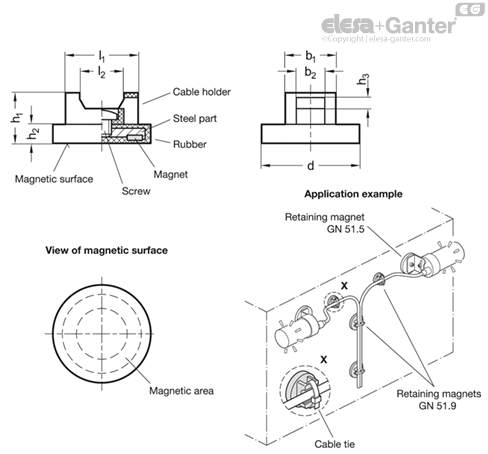

Lines and hoses that must be frequently repositioned or removed entirely for maintenance or cleaning can be easily and securely fastened to the cable holder with cable ties.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
