GN 51.6

Retaining magnets

disc-shaped, with 2 female thread, with rubber jacket

GN 51.6

Retaining magnets
Retaining magnets

GN 51.6

Retaining magnets
Retaining magnets

Steel part

zinc plated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

Rubber jacket

Elastomer (TPE)

80 shore A ≈

black

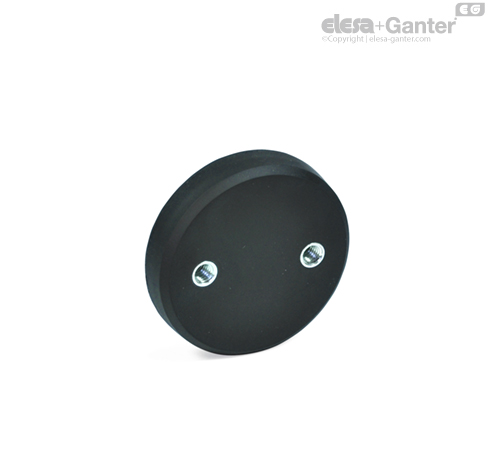

Retaining magnets GN 51.6 are a shielded magnetic system with rubber jacket.

The rubber jacket protects sensitive surfaces from being damaged by the magnet and also delivers a higher friction coefficient, resulting in high lateral adhesion forces.

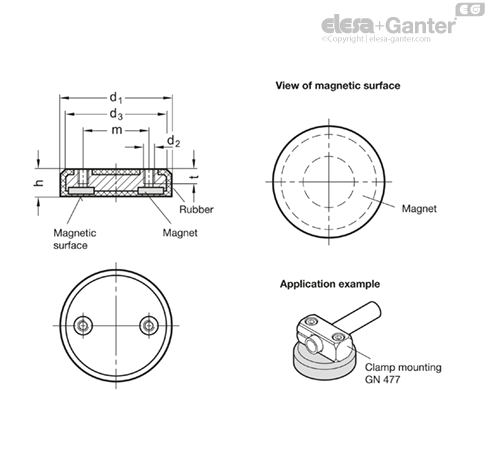

Its dimensions, especially the drill hole spacing m and the thread d2, match the clamp mountings  GN 473GN 477 and GN 480.
