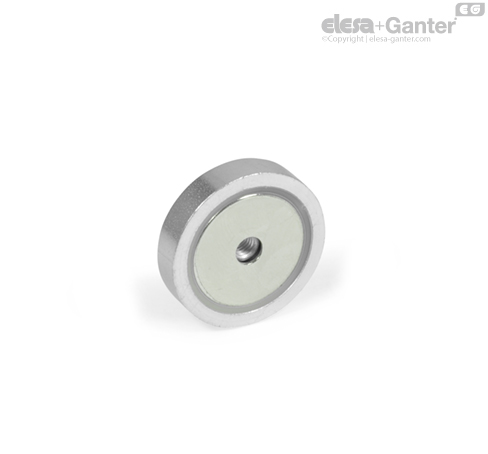

GN 50.5

Retaining magnets

Disk-Shaped, with Internal Thread

GN 50.5

Retaining magnets
Retaining magnets

GN 50.5

Retaining magnets
Retaining magnets

Housing

Steel, zinc plated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Plastic cover

Technopolymer (Polyamide PA)

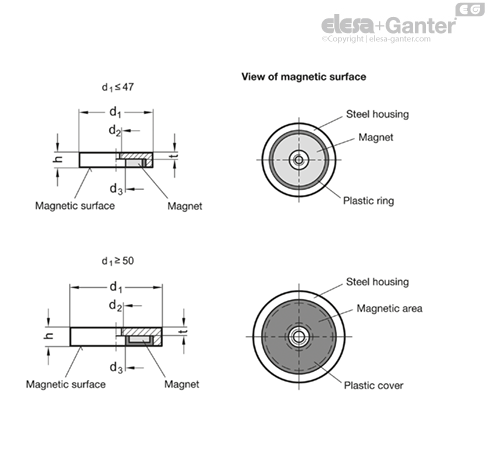

Retaining magnets GN 50.5 are combined with a steel housing and a plastic ring and the plastic cover into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

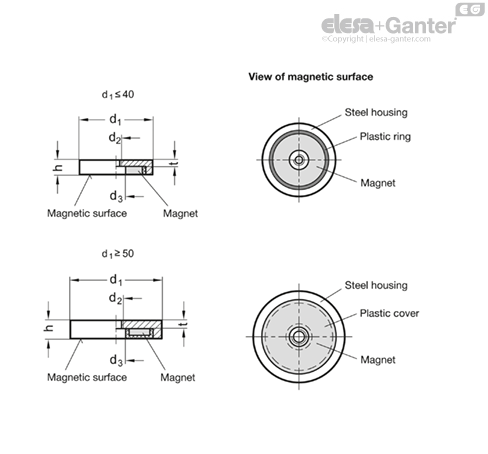

For diameter d1 ≥ 50 the adhesive surface is lagged with an all over plastic cover.

To ensure that the magnetic properties are not impaired negatively, the fixing screws should be made of non-magnetic material , like for example stainless steel, brass or plastic.
