GN 50.1

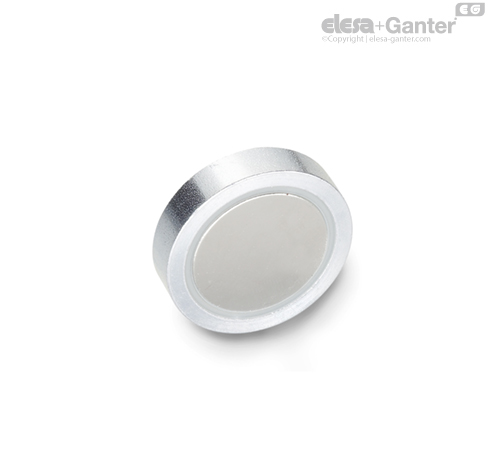

Retaining magnets

disc-shaped, without thread

GN 50.1

Retaining magnets
Retaining magnets

GN 50.1

Retaining magnets
Retaining magnets

Housing

Steel, zinc plated

Materials of the magnet:

Hard ferrite HF

temperature resistant up to 200 °C

SmCo SC

Samarium, cobalt

temperature resistant up to 200 °C

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

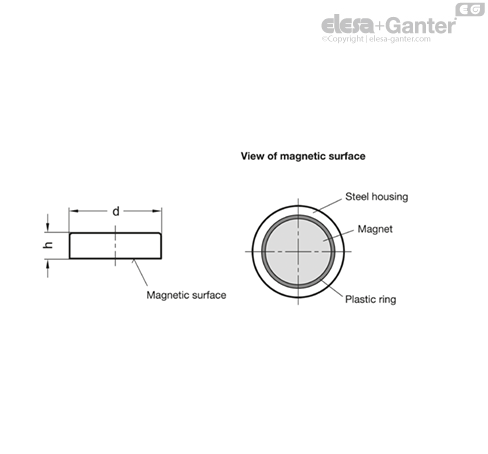

Retaining magnets GN 50.1 are combined with a steel housing and a plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

The retaining magnets are easy to fasten securely by side clamping, e.g. with a grub screw GN 913.2 .

  • Rubber caps GN 70.2
