GN 6342

Washers

Steel / Stainless Steel, with axial friction bearing

GN 6342

Washers
Steel

GN 6342-NI

Washers
Stainless Steel

GN 6342

Washers
Steel

Version in Steel

Steel ST

blackened

Version in Stainless Steel

Stainless Steel NI

AISI 303

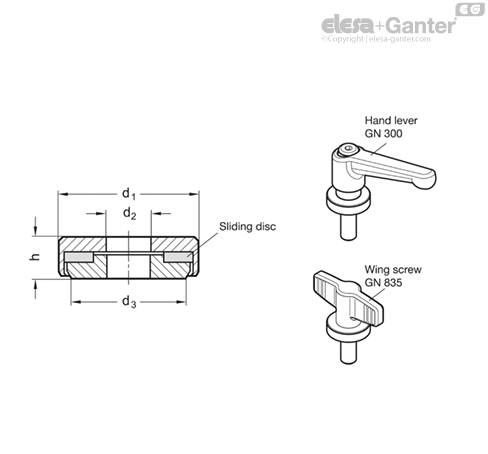

Sliding disk

  • Plastic (Polyamide 46)
  • glasfibre reinforced
  • temperature resistant up to 120 °C
  • slightly greased (PTFE-mounting grease)

Used in connection with clamping screws, e. g. star knob screws, washers with axial friction bearing GN 6342 offer the following advantages:

- almost double the clamping force owing to lower area friction

- fixed contact surface acting gentrly on the element to be clamped
