GN 709.7

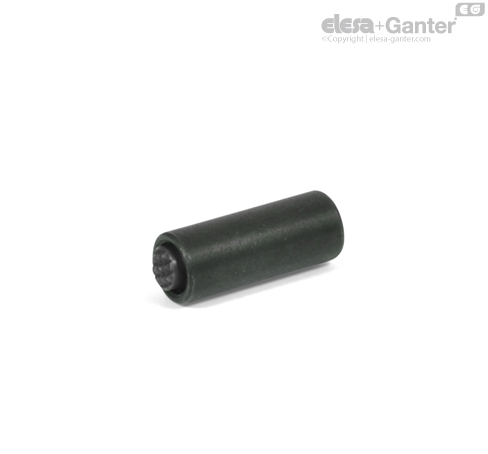

Clamping pads

with female thread

GN 709.7

Clamping pads
Clamping pads

GN 709.7

Clamping pads
Clamping pads

Types

  • Type B: Ball steel, smooth contact face
  • Type R: Ball steel, serrated contact face
  • Type K: Ball plastic, smooth contact face

Steel

  • tempered
  • Tensile strength class 10.9

Ball

Type B and R:

Steel hardened (54+2 HRC)

Type K:

Plastic (Polyacetal POM)

O-Ring

Rubber NBR (Perbunan)

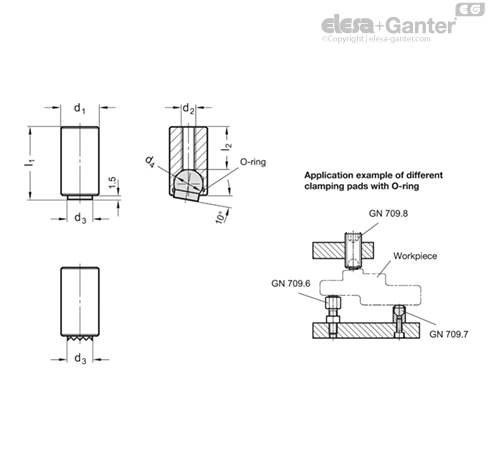

Clamping pads GN 709.7 are also used in jig and fixture construction, for example for clamping workpieces, as movable bearing surface or as stop. The swivel-mounted ball compensates uneven and non-parallel contact surfaces by as much as 10°. It is also secured against further twisting.

The O-ring holds the ball in position and prevents dirt from penetrating, resulting in a long service life and constant mobility.
