GN 709.6

Clamping pads


GN 709.6

Clamping pads
Clamping pads

GN 709.6

Clamping pads
Clamping pads


  • Type B: Ball steel, smooth contact face
  • Type R: Ball steel, serrated contact face
  • Type K: Ball plastic, smooth contact face


  • tempered
  • Tensile strength class 10.9


Type B and R:

Steel hardened (54+2 HRC)

Type K:

Plastic (Polyacetal POM)


Rubber NBR (Perbunan)

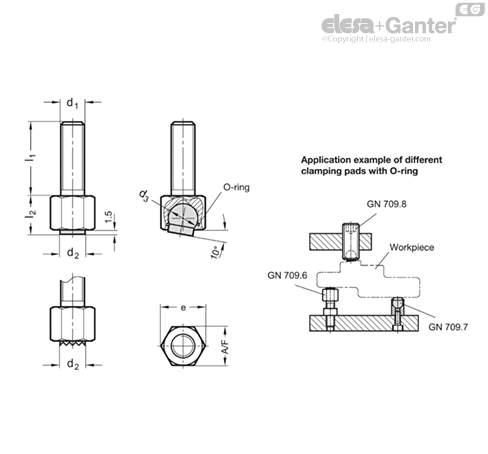

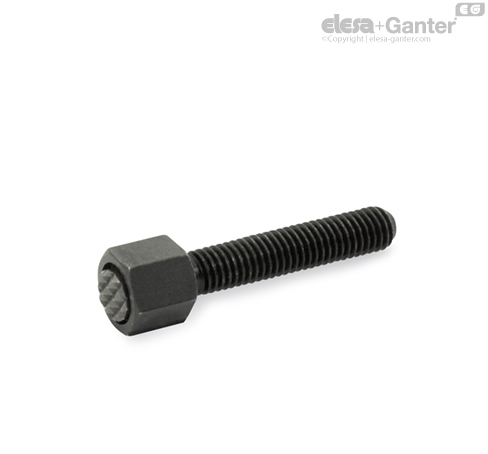

Clamping pads GN 709.6 are also used in jig and fixture construction, for example for clamping workpieces, as movable bearing surface or as stop. The swivel-mounted ball compensates uneven and non-parallel contact surfaces by as much as 10°. It is also secured against further twisting.

The O-ring holds the ball in position and prevents dirt from penetrating, resulting in a long service life and constant mobility.
