GN 7984.2

Socket Cap Screws

Stainless Steel, with Low-Profile Head, with Recessed Stud for Loss Protection

GN 7984.2

Socket Cap Screws
Socket Cap Screws

GN 7984.2

Socket Cap Screws
Socket Cap Screws

Stainless steel AISI 304 NI

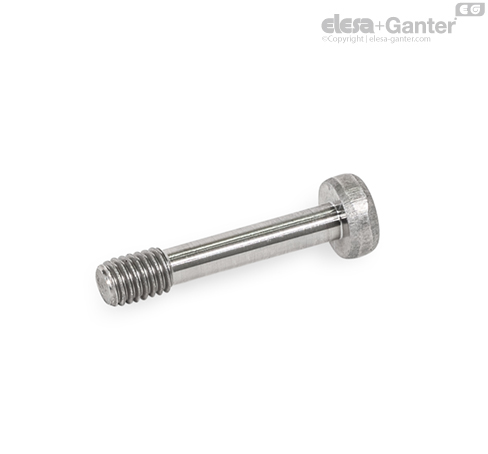

Socket cap screws GN 7984.2 have a low-profile head to enable use in areas with limited space.

Due to a recessed stud d3, the screw can be easily secured against loss, for example in a cover. Thus the „captivity of the mounting element“ according to the Machinery Directive 2006 / 42 / EG is given.

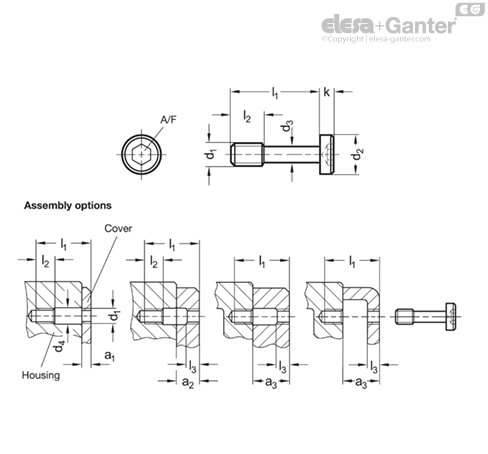

For this purpose, instead of a normal through / threaded hole a thread d1 on both sides, if necessary with a corresponding clearance hole d4 must be provided. Depending on the design and required clamping length a1 ... a3 of the cover, there are a number of assembly options as shown.
