GN 606

Ball point screws

Steel / Stainless Steel

GN 606

Ball point screws
Steel

GN 606-NI

Ball point screws
Stainless Steel

GN 606

Ball point screws
Steel

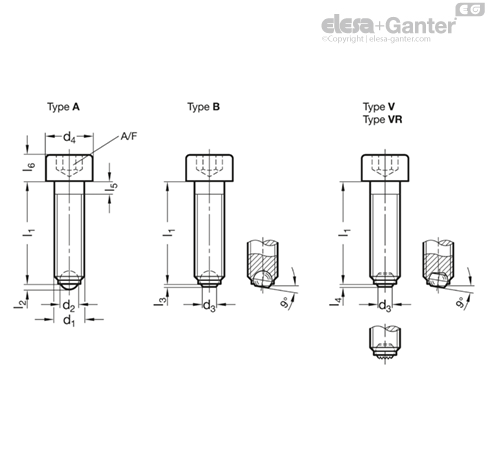

Version in Steel

Types

  • Type A: full ball
  • Type B: flat ball
  • Type V: flat ball, with swivel limiting stop
  • Type VR: flat ball, with swivel limiting stop, corrugated

Steel

  • Tensile strength class 12.9
  • blackened

Ball

  • hardened
  • blank

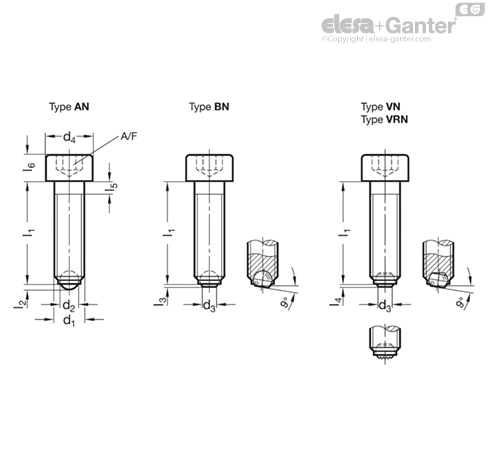

Version in Stainless Steel

Types

  • Type AN: full ball
  • Type BN: flat ball
  • Type VN: flat ball, with swivel limiting stop
  • Type VRN: flat ball, with swivel limiting stop, corrugated

Screw

Stainless Steel AISI 304

Ball

Stainless Steel AISI 440C

hardened

Ball point screws GN 606 with full ball (Type A / Type AN) are used in applications where a ball point contact is required.

The flat faced moving ball (Type B / Type BN) allows a clamping or supporting of non parallel surfaces.

The ball of Type V/VN/VR/VRN can be swivelled to a maximum of 9° to ensure that clamping is always maintained on the flat section of the ball.

  • Ball point screws with (full) plastic ball (Type AK)
