GN 311

Adjustable hand levers

Zinc Die Casting, Insert Stainless Steel, for Shaft Collars

GN 311

Adjustable hand levers
Adjustable hand levers

GN 311

Adjustable hand levers
Adjustable hand levers

Handle

Zinc die casting

Powder coated

Black, RAL 9005, textured finish SW

Insert

Stainless steel AISI 303

Retaining screw

Stainless steel AISI 303

For shaft collars of the standard families GN 706... and GN 707..., adjustable hand levers GN 311 replace the hex socket screw DIN 912. That allows the shaft collars to be adjusted easily and quickly without tools.

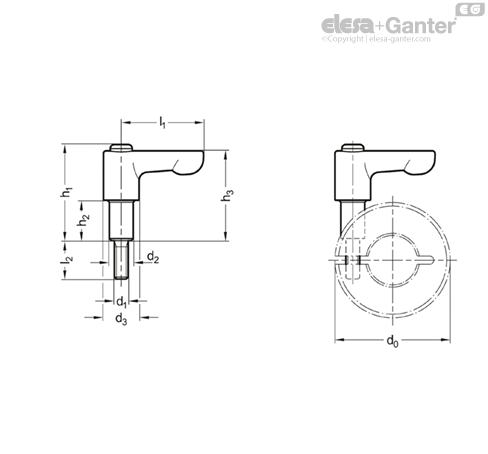

The table of dimensions of the shaft collars shows the corresponding hand lever for the respective shaft collar size d1.

Semi-split shaft collars GN 706.2 including hand lever are available under GN 706.4.
