GN 350.1

Levelling sets

Steel / Stainless Steel, short version

GN 350.1

Levelling sets
Levelling sets

GN 350.1-NI

Levelling sets
Levelling sets, Stainless Steel

GN 350.1

Levelling sets
Levelling sets

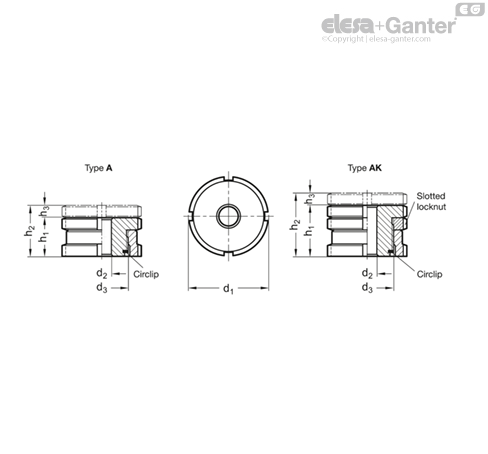

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Version in Steel

Steel, 1.7225 (42 CrMo 4V) ST

zinc plated, blue passivated

Version in Stainless Steel

Stainless Steel AISI 303 NI

(X 10 CrNiS 18-9)

F1: max. total load

F2: max. load after deduction of the max. preload

  • for screws 8.8 µ = 0.125 (Steel version)
  • for screws 6.8 µ = 0.14 (Stainless Steel version)

Levelling sets GN 350.1 are used for levelling, adjusting and linking operations if small dimensions are given.

They comprise a threaded upper sleeve and a female threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810 . A locking ring serves also as a height limiter for the max. height.

  • C-Spanner DIN 1810 (code no. see table)
