DIN 6325

Dowel Pins

Steel

DIN 6325

Dowel Pins
Dowel Pins

DIN 6325

Dowel Pins
Dowel Pins

Tolerance class

  • M6: ISO Fundamental Tolerance m6 (acc. to DIN ISO 286-2)

Steel ST

  • Hardened (HRC 60 ±2)
  • Fit dimension d ground, plain finish

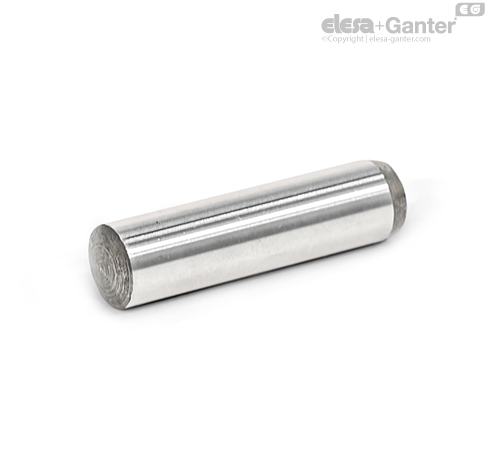

Dowel pins DIN 6325 connect, secure and position machine parts.

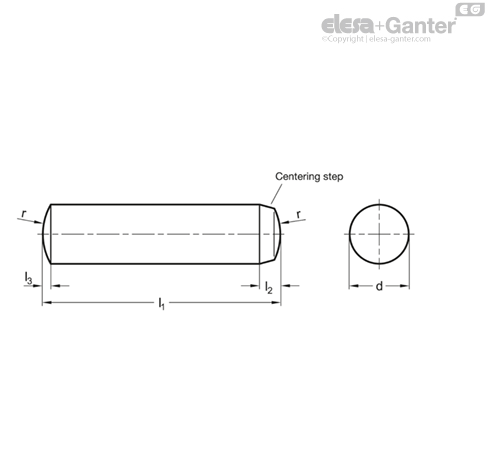

They are generally used in conjunction with through holes. The centering step facilitates press-fitting.

The dimensions do not conform to ISO 8734 but can partially replace these. In combination with a location hole H7 a transition fit can be achieved.

  • Stainless steel
